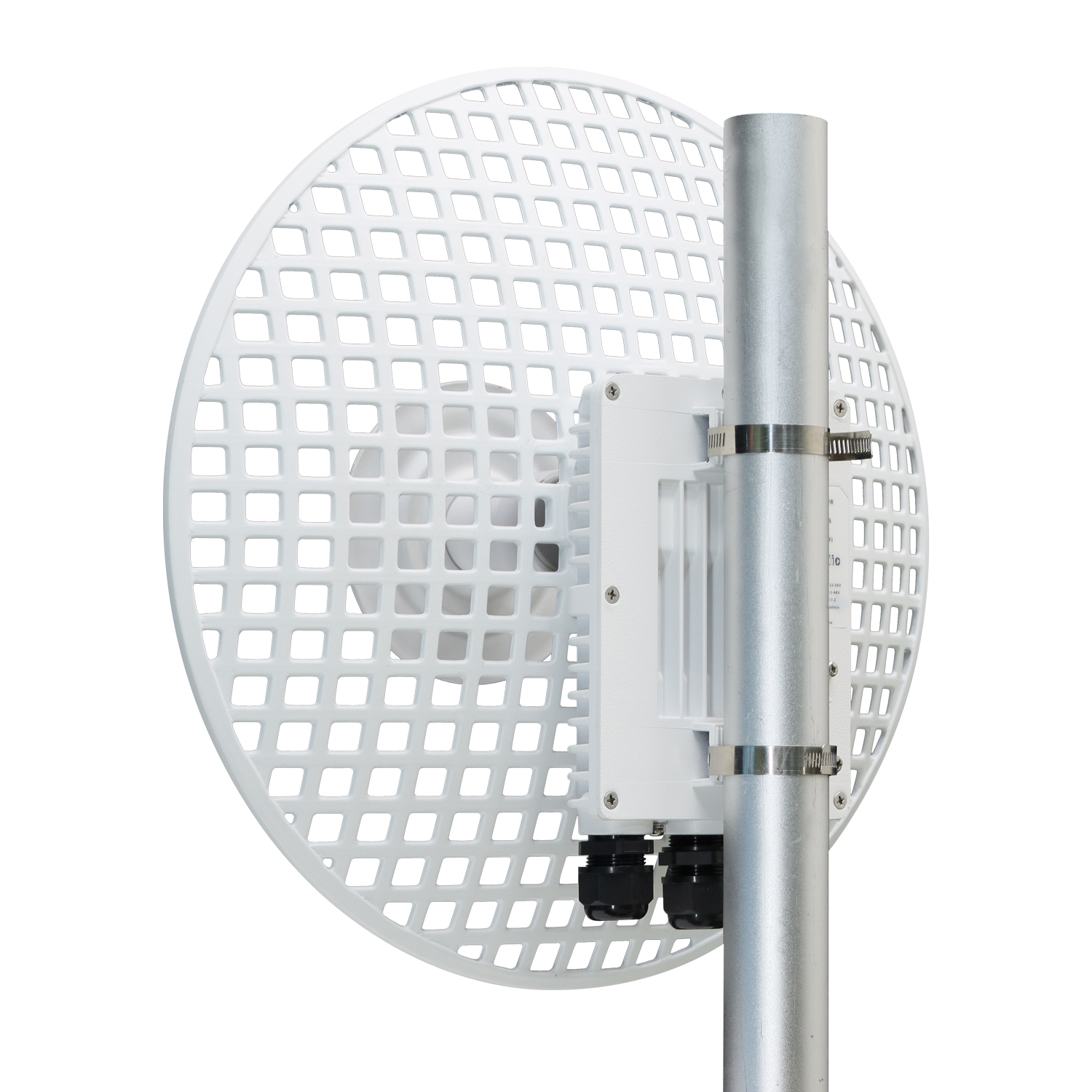

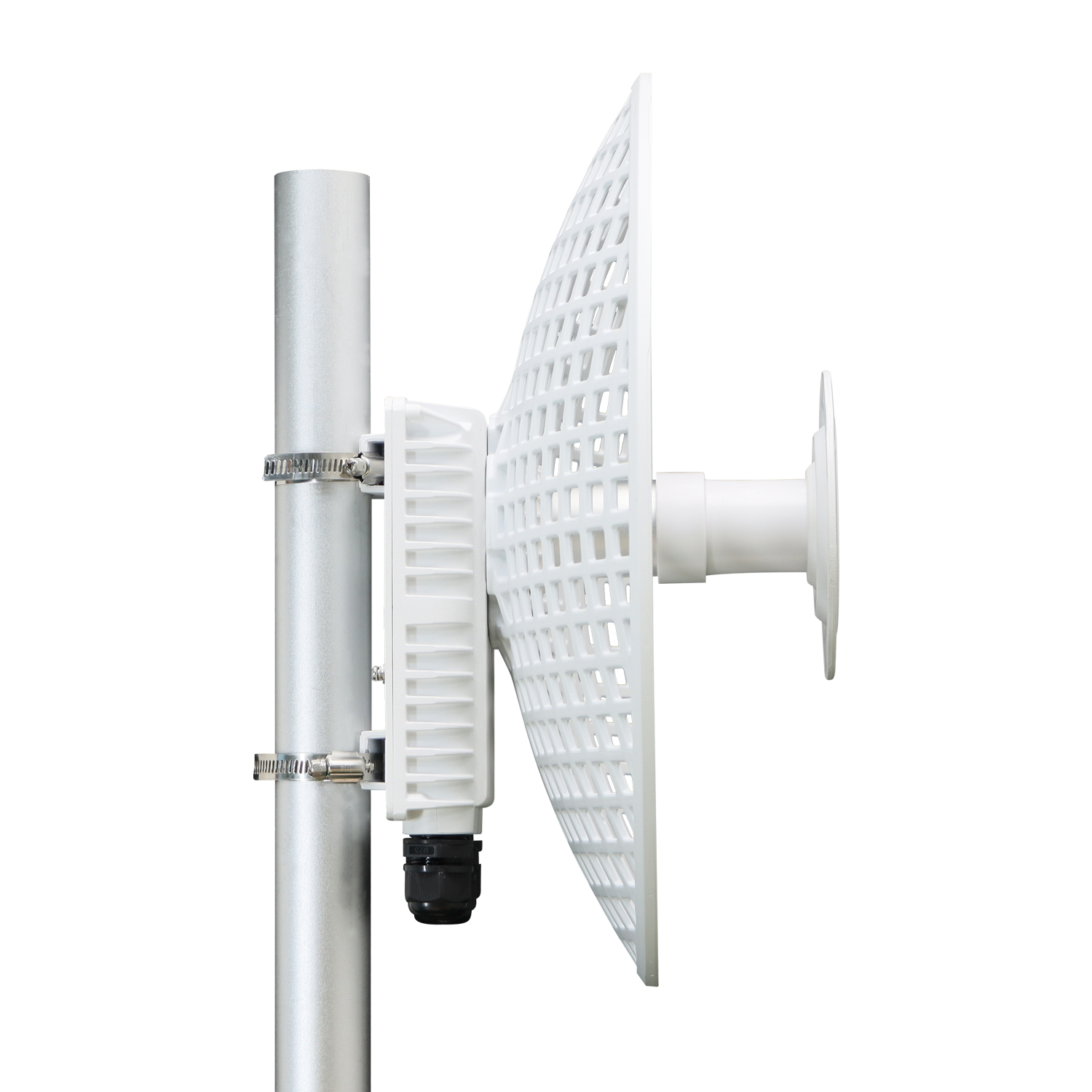

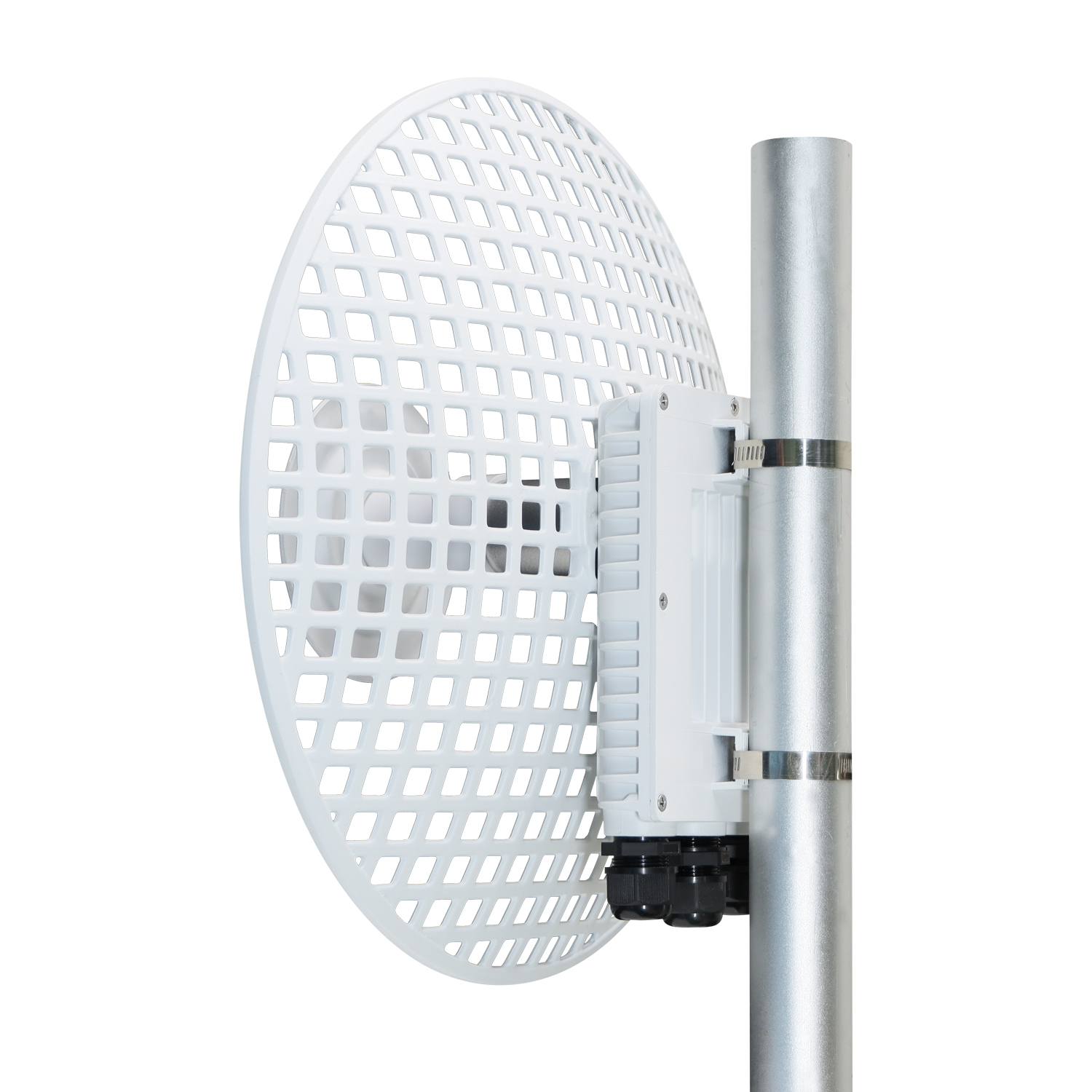

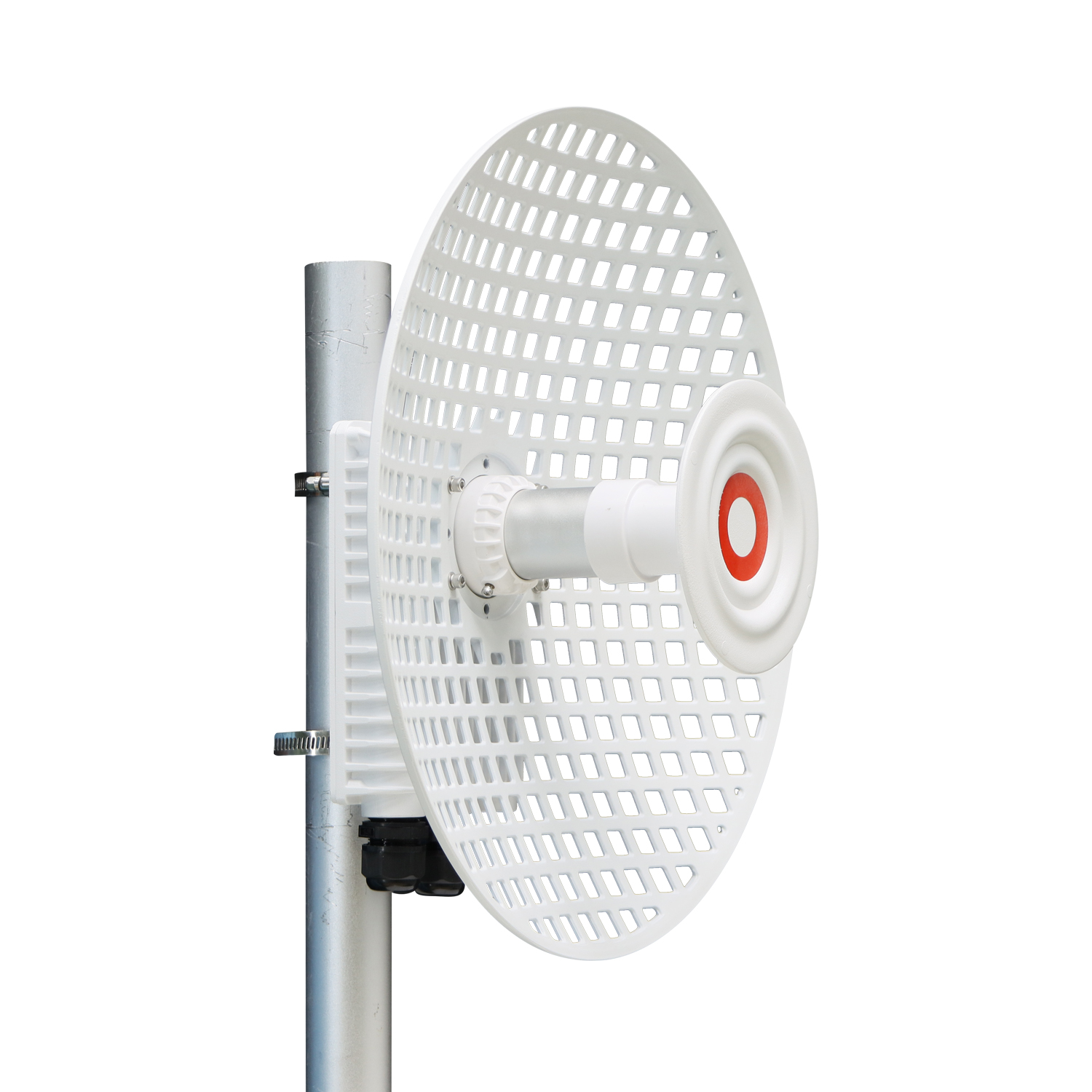

X5-G25 Wi-Fi 6 Outdoor Wireless Bridge, 25dBi Grid Antenna, 2.5Gbps, IP67
X5-G25
5 Years Warranty
Specifications
| Type | Outdoor Long-Range PtP Wireless Bridge |
| Standard | Wi-Fi 6 (802.11ax), 5.1–5.8GHz |
| CPU | Dual-core ARM Cortex-A53 @ 1.0GHz |
| Antenna | 25dBi Grid Antenna, 11° Beamwidth, Φ42cm |
| Channel Bandwidth | 20/40/80/160MHz |
| Max TX Power | 29dBm @20MHz, 27dBm @40/80MHz |
| Ethernet | 1× 2.5Gbps + 1× Gigabit |
| Power | PoE 22–56V or DC 12V |
| Power Consumption | <15W |
| Surge Protection | 8kV |
| Enclosure | IP67, Die-cast Aluminum |
| Dish Diameter | Φ42 cm |
| Weight | 6.8 kg |
| Temperature | -30°C ~ +60°C |
Features
- 25dBi dual-linear grid antenna with 11° beamwidth for long-range directional PtP links
- Wi-Fi 6 (802.11ax) with 160MHz channel bandwidth for high-throughput backhaul
- 1× 2.5Gbps + 1× Gigabit Ethernet ports for high-bandwidth wired connections
- Die-cast aluminum IP67 enclosure with 8kV surge protection
- Wide PoE input range 22–56V supports diverse power source deployments
- WPA3-SAE security and VLAN 802.1Q with 802.1p priority
- SNMP v1/v2/v3, TR069, SSH, HTTPS enterprise management
The X5-G25 is a professional outdoor Wi-Fi 6 point-to-point wireless bridge with a 25dBi dual-linear grid antenna and 11° beamwidth for long-range directional links. Built on a dual-core ARM Cortex-A53 platform with 160MHz channel support, 1×2.5Gbps and 1×Gigabit Ethernet, die-cast aluminum IP67 enclosure, 8kV surge protection, and enterprise management (SNMP, TR069, SSH), it is designed for WISP backhaul, CCTV transmission, rural broadband, and ISP last-mile wireless connectivity.
Ideal For
- PtP wireless backhaul links for WISPs, ISPs, and rural broadband providers
- High-definition IP camera and CCTV video transmission over 5–20km
- Farm, mine, oilfield, and remote facility broadband connectivity
- Building-to-building enterprise network links without fiber trenching
- Starlink and satellite internet extension to secondary buildings or sites
Deployment Advantages
The 25dBi grid antenna provides a high link budget in a compact Φ42cm die-cast aluminum dish that is lighter and easier to handle than larger 30dBi counterparts, while still covering most practical long-distance deployment scenarios. The 160MHz channel option with Wi-Fi 6 OFDMA support delivers throughput comparable to legacy licensed microwave links at a fraction of the cost.
The 2.5Gbps Ethernet port future-proofs the installation for bandwidth growth without requiring hardware replacement. Wide PoE input range (22–56V) accepts both passive PoE adapters and active 802.3at/bt switches, reducing constraints on power sourcing in tower and rooftop installations.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, private-label cloud management, and custom packaging. Volume pricing is available for WISPs, ISPs, and wireless equipment distributors. Contact us to discuss your project requirements.
