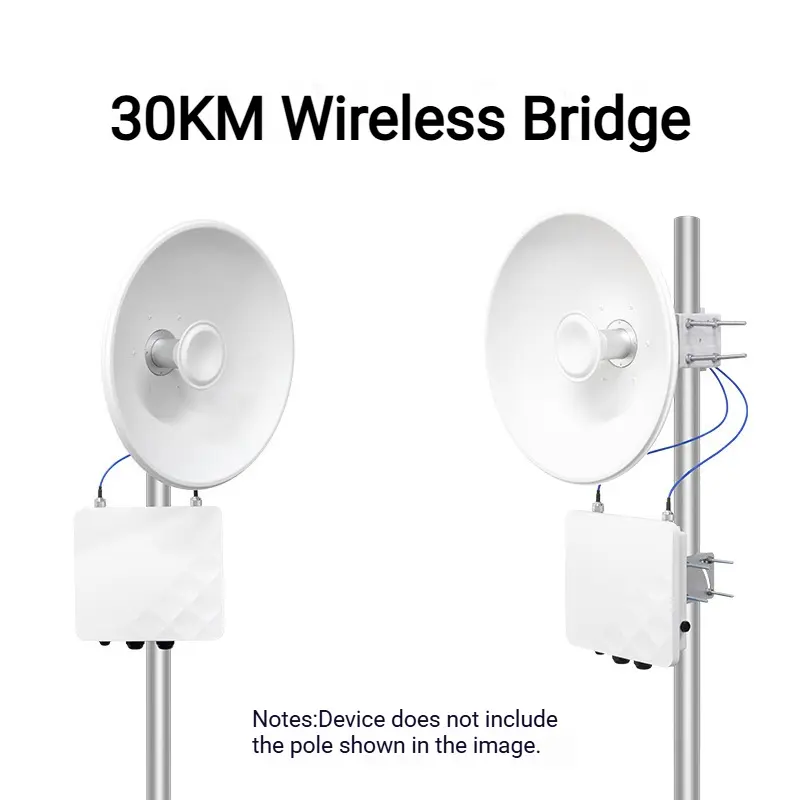

WB5acH6-29 5GHz 867Mbps 30KM Outdoor Wireless Bridge, 29dBi, IP67, SFP
WB5ACH6-29
5 Years Warranty
Specifications
| Type | Outdoor Long-Range PtP Bridge |
| Standard | IEEE 802.11 a/n/ac (5GHz) |
| Antenna | External 29dBi Parabolic Directional |
| Max Speed | 867Mbps |
| Range | Up to 30km (LoS) |
| WAN | 1× Gigabit, 24–48V PoE |
| LAN | 1× Gigabit |
| SFP | Optional Gigabit SFP |
| Power | 24V Passive PoE, DC 12V (802.3af optional) |
| Power Consumption | <15W |
| Enclosure | IP67 All-Metal |
| Dimensions | 243 × 218 × 67 mm |
| Weight | 1.756 kg |
| Temperature | -40°C ~ +70°C |
Features
- 29dBi external parabolic directional antenna for 30km ultra-long PtP links

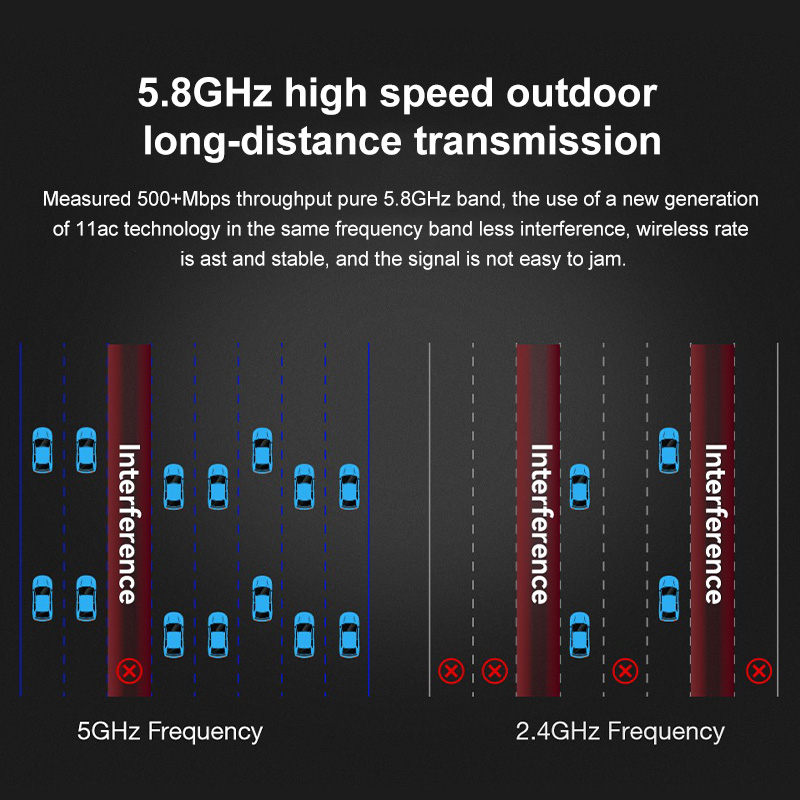

- 867Mbps 5GHz 802.11ac with TDMA and ATPC for optimized RF performance

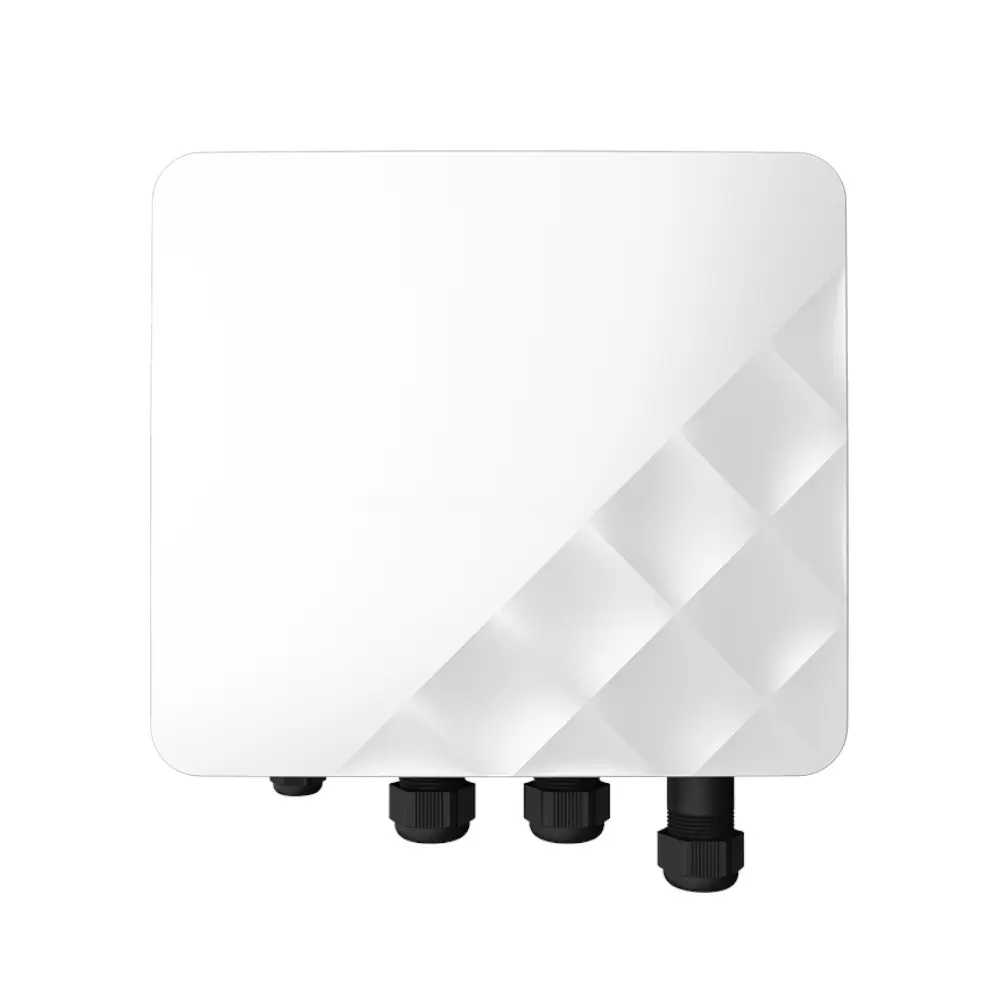

- IP67 all-metal industrial housing for harsh outdoor environments
- Optional Gigabit SFP fiber port for hybrid copper+fiber deployments
- Wide operating temperature -40°C to +70°C for extreme climates
- VLAN, cloud management, and SNMP for enterprise-grade control
The WB5acH6-29 is an industrial-grade 5GHz outdoor wireless bridge with a 29dBi external parabolic directional antenna for ultra-long-range point-to-point links up to 30km. Running 802.11ac at 867Mbps with TDMA and Automatic Transmit Power Control, an IP67 all-metal enclosure, optional Gigabit SFP, and a -40°C to +70°C operating range, it is designed for WISP backhaul, industrial networking, oil field surveillance, and remote broadband delivery in the most demanding outdoor environments.
Ideal For
- WISP wireless backbone and ISP last-mile PtP links over 10–30km
- Industrial site surveillance and data backhaul (mining, oil fields, substations)
- Cross-mountain, cross-river, and cross-bay long-distance wireless networking
- Hybrid fiber+wireless network topologies with optional SFP connection
- Rural broadband delivery and emergency communications infrastructure
Deployment Advantages
The 29dBi external parabolic antenna provides extremely high gain and narrow beamwidth for maximum range and interference rejection in congested RF environments. ATPC automatically adjusts transmit power based on link quality, extending equipment life and reducing interference with adjacent links in multi-point deployments.
IP67 sealing protects all connectors and internal components against water immersion and dust ingress — significantly more robust than the IP65 standard used in consumer-grade equipment. The -40°C to +70°C operating range covers arctic winters and desert summers without performance degradation.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, private-label cloud management, SFP variant configurations, and custom packaging. Volume pricing is available for WISPs, ISPs, and industrial network integrators. Contact us to discuss your project requirements.
