WB5acH6-20 5GHz 867Mbps 16KM Industrial Outdoor Wireless Bridge, IP67, TDMA
WB5ACH6-20
5 Years Warranty
Specifications
| Type | Industrial Outdoor PtP Wireless Bridge |
| Standard | IEEE 802.11 a/n/ac (5GHz) |
| Antenna | Built-in 20dBi Directional Flat Antenna |
| Max Speed | 867Mbps |
| TX Power | <26 ±2dBm |
| Range | Up to 16km (LoS) |
| WAN | 1× Gigabit (24–48V PoE) |
| LAN | 1× Gigabit |
| Power | 24V Passive PoE, DC 12V (802.3af optional) |
| Power Consumption | <12W |
| Enclosure | IP67 |
| Dimensions | 243 × 218 × 67 mm |
| Weight | 1.5985 kg |
| Temperature | -40°C ~ +70°C |
Features
- 20dBi built-in directional flat antenna for 16km stable PtP links
- 867Mbps 5GHz 802.11ac with TDMA3 intelligent dynamic polling protocol
- Automatic Transmit Power Control (ATPC) for optimized RF performance

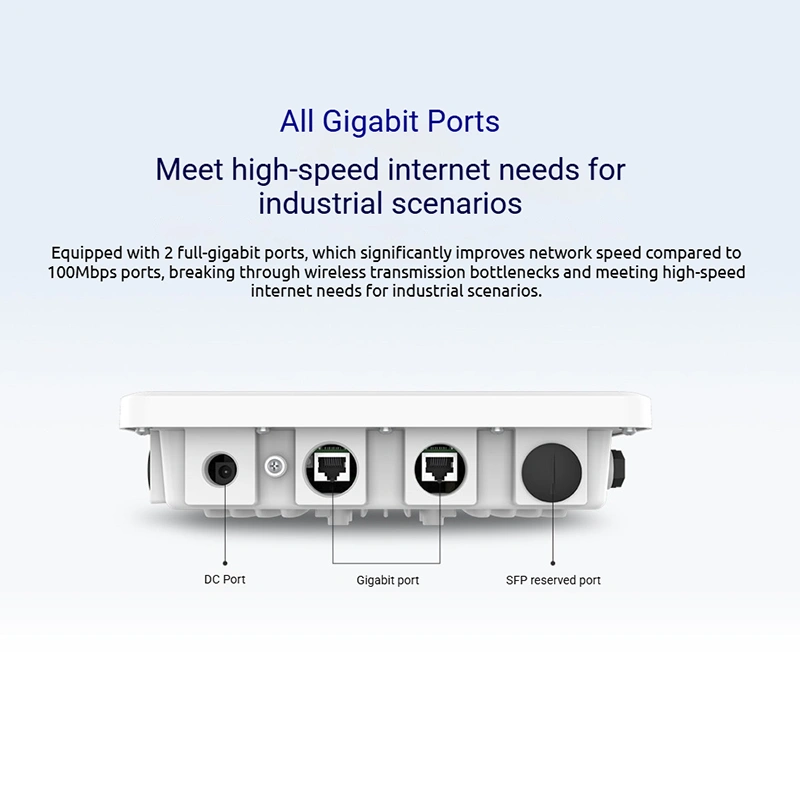

- Gigabit WAN and LAN with 24–48V wide-voltage PoE support
- IP67 industrial enclosure with -40°C to +70°C operating range
- VLAN transparent transmission, GRE tunnel, mDNS, CDP/LLDP/SSDP
- Cloud, HTTP GUI, SSH, SNMP, WNMS, Telnet management
The WB5acH6-20 is an industrial-grade 5GHz 802.11ac outdoor wireless bridge with a built-in 20dBi directional flat antenna for 16km point-to-point links at 867Mbps. Featuring TDMA3 intelligent dynamic polling, ATPC, Gigabit WAN/LAN with wide 24–48V PoE, IP67 metal enclosure rated to -40°C to +70°C, VLAN transparent transmission, GRE tunnel, and comprehensive cloud/SNMP/SSH management, it is designed for industrial backhaul, rural broadband, campus connectivity, and remote surveillance infrastructure.
Ideal For
- Industrial and manufacturing site wireless backbone links up to 16km
- Rural and remote area broadband delivery from tower to building
- Surveillance network backhaul across large industrial or campus sites
- Cross-building enterprise networking without fiber trenching
- Power grid, water treatment, and infrastructure monitoring data links
Deployment Advantages
TDMA3 intelligent dynamic polling provides consistent high-throughput performance in PtMP scenarios with multiple subscriber nodes — avoiding the performance degradation that standard 802.11 CSMA/CA experiences as client count increases. ATPC automatically adjusts transmit power to maintain optimal link quality while reducing interference with neighboring links.

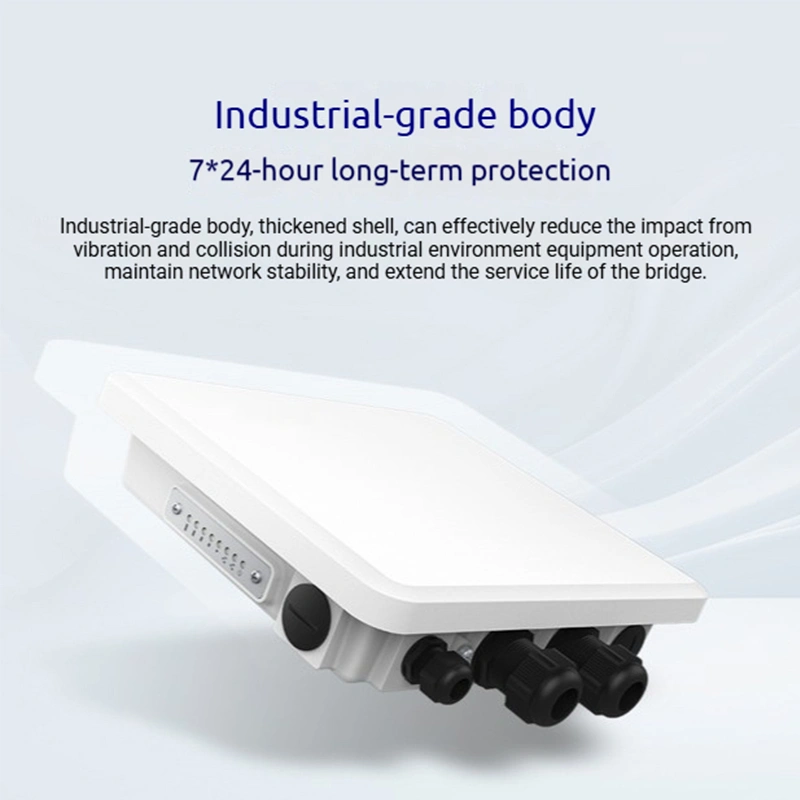

Wide 24–48V PoE input range covers both passive PoE adapters and active 802.3at switches without additional hardware. The IP67 enclosure and -40°C to +70°C operating range match the requirements of industrial and harsh-climate deployments where standard IP65 equipment may not provide adequate sealing.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, WNMS private-label deployment, and custom packaging. Volume pricing is available for industrial integrators, WISPs, and surveillance system operators. Contact us to discuss your project requirements.
