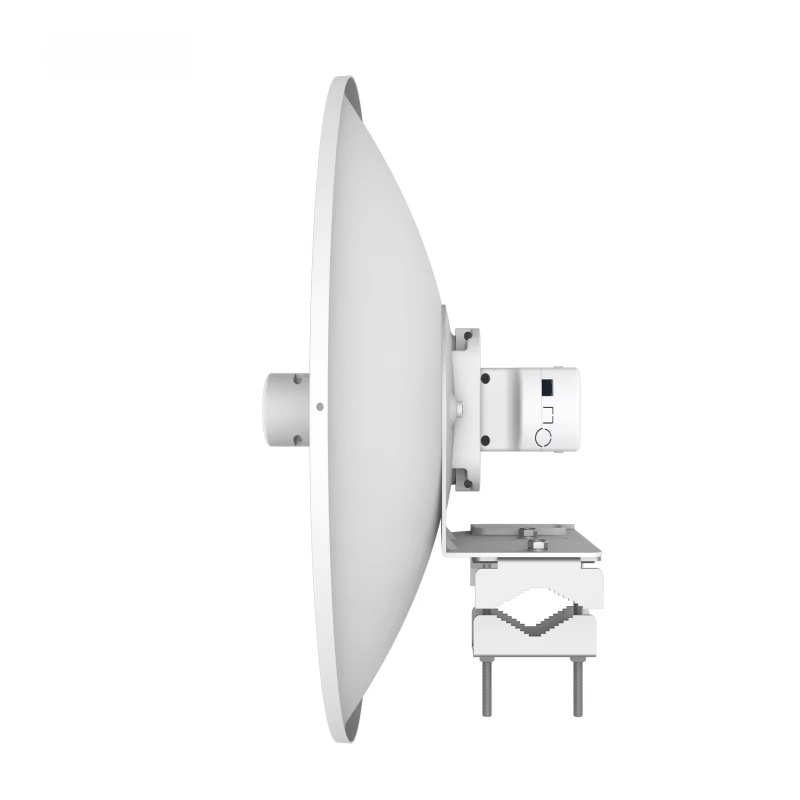

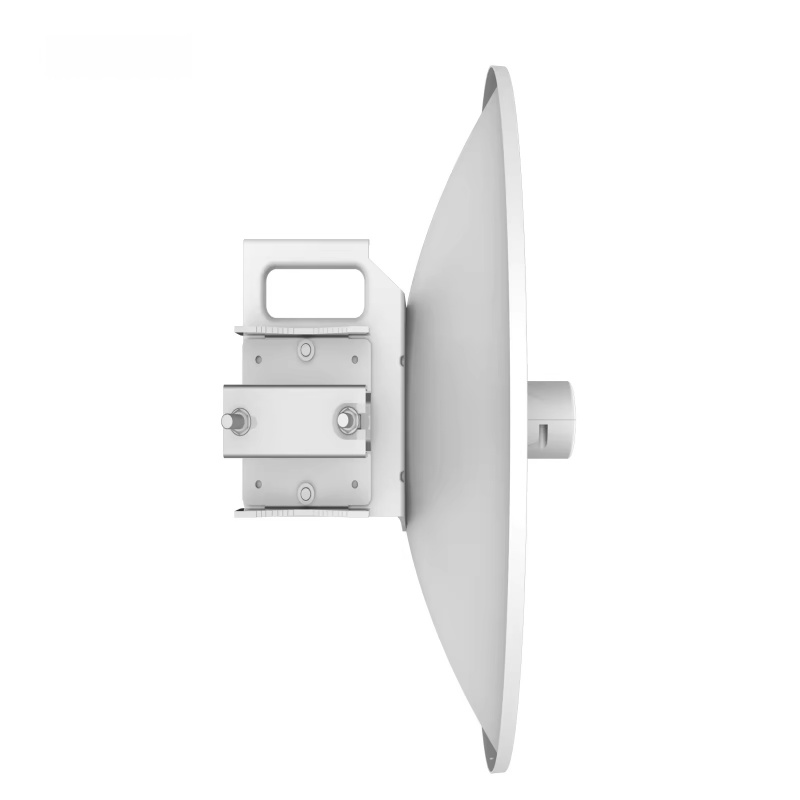

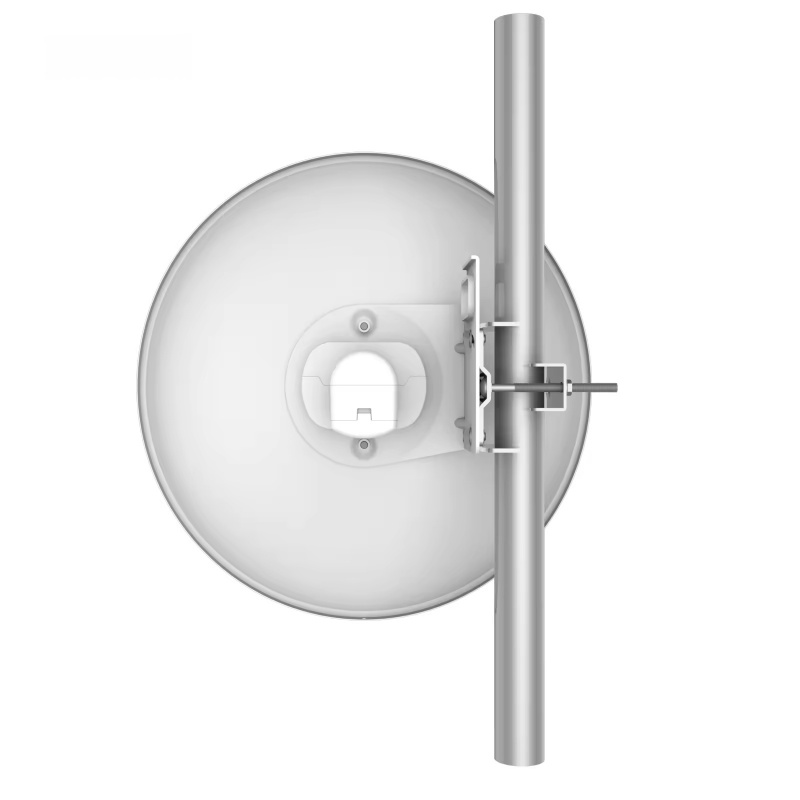

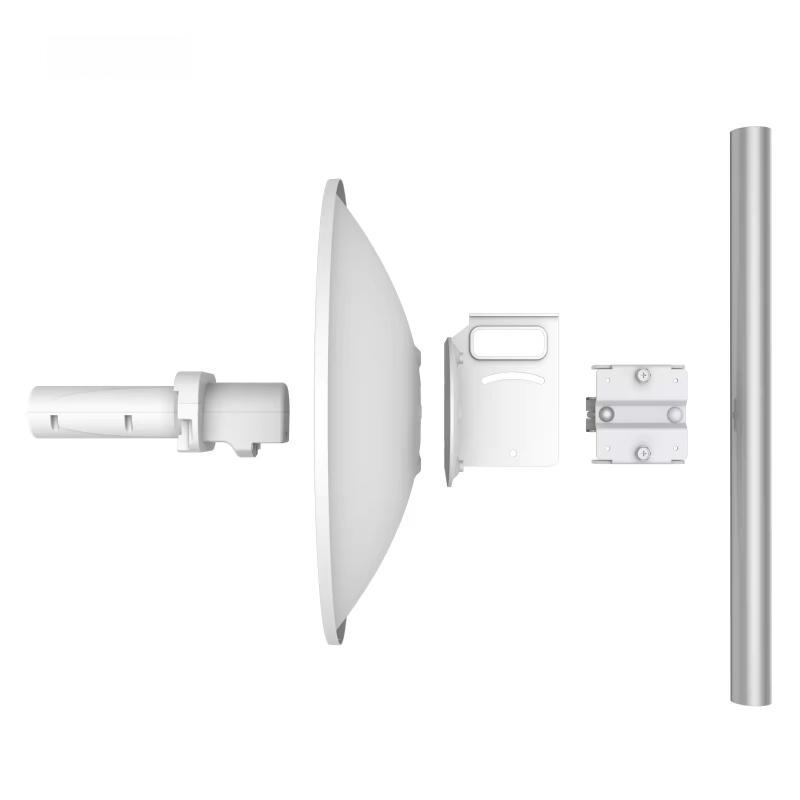

WB5acDish-Pro 30KM Outdoor Wireless Bridge, 25dBi Dish, 867Mbps, IP65
WB5ACDISH-PRO
5 Years Warranty
Specifications
| Type | Outdoor Point-to-Point Wireless Bridge |
| Standard | IEEE 802.11 a/n/ac (5GHz) |
| Antenna | 25dBi Integrated High-Gain Dish |
| Max Speed | 867Mbps |
| Range | Up to 30km (LoS) |
| WAN | 1× Gigabit, 802.3af 48V PoE |
| LAN | 1× Gigabit |
| Power | 802.3af 48V PoE, DC 12–24V |
| Power Consumption | <12W |
| Enclosure | IP65 |
| Dimensions | Φ466 × 274 mm |
| Weight | 2.2 kg |
| Temperature | -30°C ~ +55°C |
Features
- Up to 30km point-to-point range with 25dBi integrated high-gain dish antenna
- 867Mbps 5GHz 802.11ac with Advanced TDMA3 Dynamic Protocol
- Dual power: 802.3af 48V PoE and DC 12–24V input

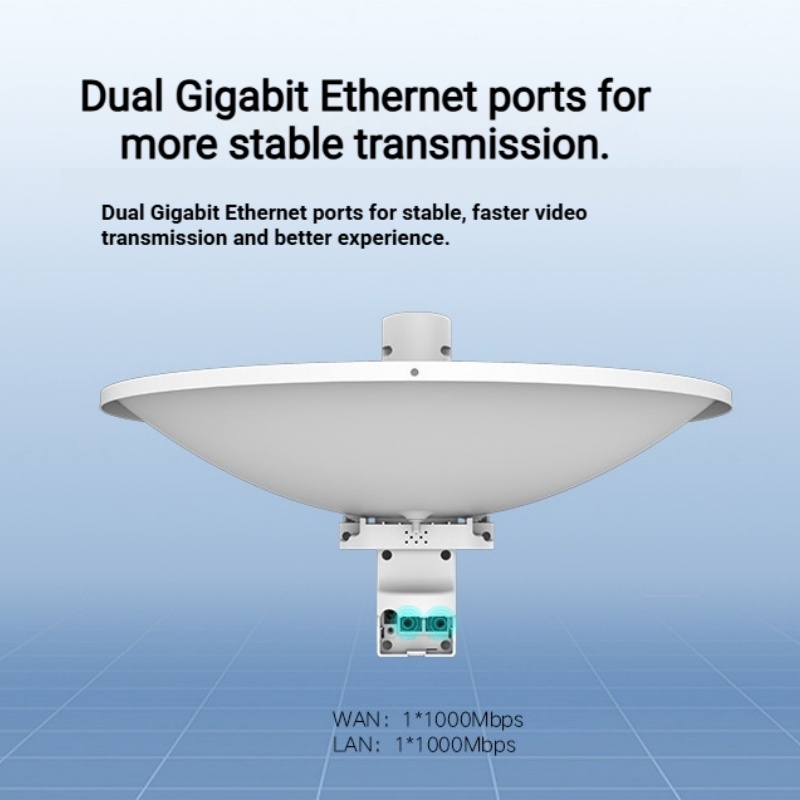

- Gigabit WAN and LAN ports for full-speed backhaul
- IP65 weatherproof rugged outdoor enclosure
- Cloud and app management for remote monitoring
- Plug-and-play pairing for fast field deployment
The WB5acDish-Pro is a high-performance 5GHz outdoor wireless bridge with a 25dBi integrated high-gain dish antenna, delivering stable point-to-point links up to 30km. Running 802.11ac at 867Mbps with Advanced TDMA3 dynamic protocol, dual gigabit Ethernet ports, and dual PoE/DC power input, it is designed for long-distance backhaul, CCTV transmission, rural internet delivery, and ISP last-mile deployments in harsh outdoor environments.
Ideal For
- Long-distance point-to-point wireless backhaul between remote sites
- Rural broadband delivery from tower to village or building
- IP camera and CCTV video transmission over 10–30km
- ISP last-mile wireless links and WISP backbone connections
- Cross-mountain, cross-river, or cross-bay wireless networking
Deployment Advantages
The 25dBi high-gain dish antenna focuses signal into a narrow beam for maximum range and interference rejection in open outdoor environments. TDMA3 Dynamic Protocol improves throughput efficiency and stability compared to standard CSMA-based wireless, particularly at long distances where latency and retransmissions degrade performance.
Dual power input (802.3af PoE and DC 12–24V) provides flexibility in tower and rooftop deployments where PoE switches or DC adapters may be the available power source. IP65 weatherproofing ensures reliable operation across seasons and climates.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, private-label cloud management platforms, enclosure branding, and custom packaging. Volume pricing is available for WISPs, ISPs, surveillance integrators, and wireless distributors. Contact us to discuss your project requirements.
