WB503H 5GHz 300Mbps 3KM Outdoor PtP Wireless Bridge, Plug-and-Play, 2-Pack

WB503H

Type 5GHz Outdoor PtP Wireless Bridge
CPU Qualcomm AR9344, 64MB DDR, 4MB Flash
Standard IEEE 802.11a/n (5.8GHz)
Antenna Built-in 14dBi Dual-Polarized Directional
Max Speed 300Mbps
View all specifications →

5 Years Warranty

Talk via WhatsApp

Specifications

Type 5GHz Outdoor PtP Wireless Bridge
CPU Qualcomm AR9344, 64MB DDR, 4MB Flash
Standard IEEE 802.11a/n (5.8GHz)
Antenna Built-in 14dBi Dual-Polarized Directional
Max Speed 300Mbps
TX Power 23dBm ±2dBm
Range 0–4km (LoS)
Ethernet 2× 10/100Mbps (24V PoE)
Power DC 12V or 24V PoE
Power Consumption <6W

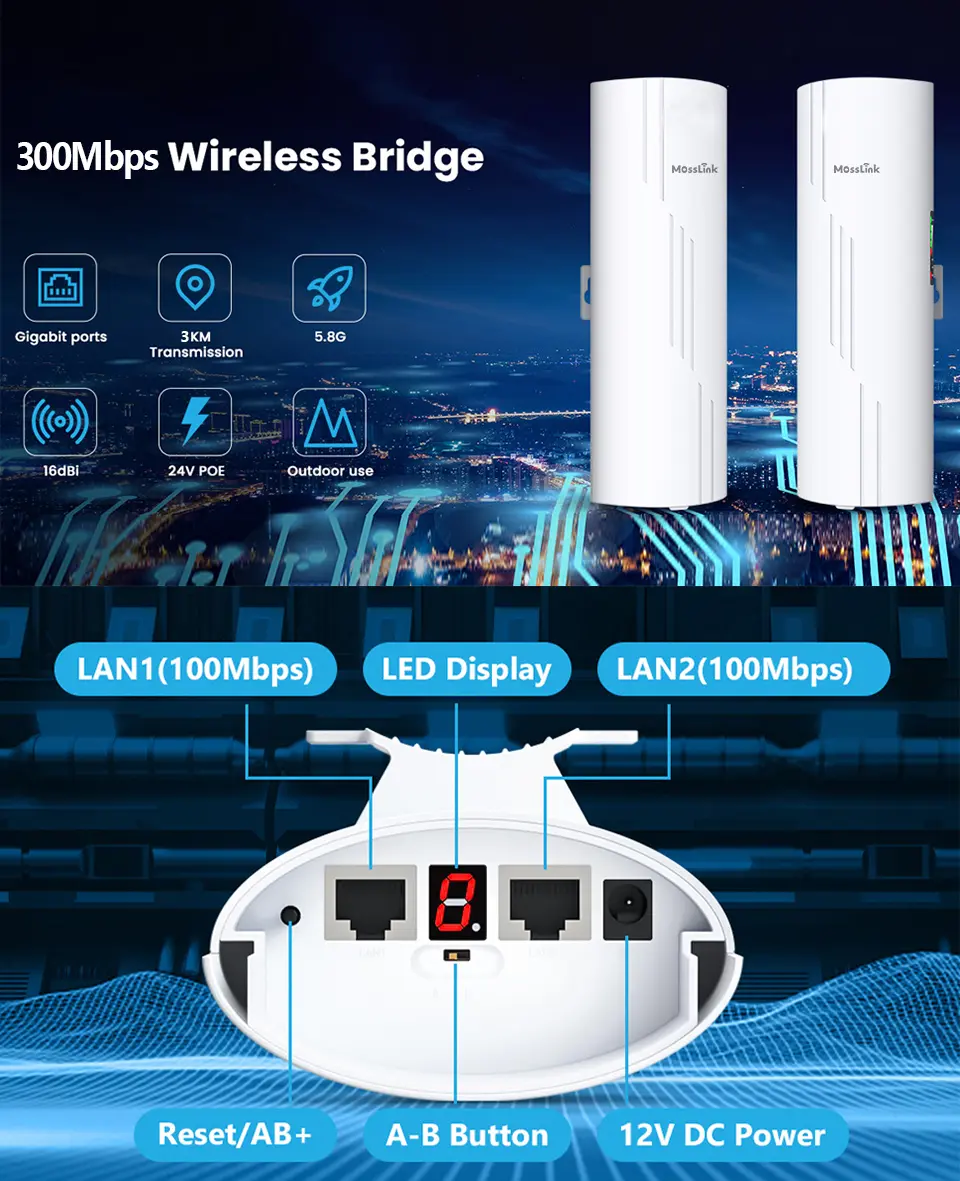

Digital Display 16-channel LED (0–9, A–F)

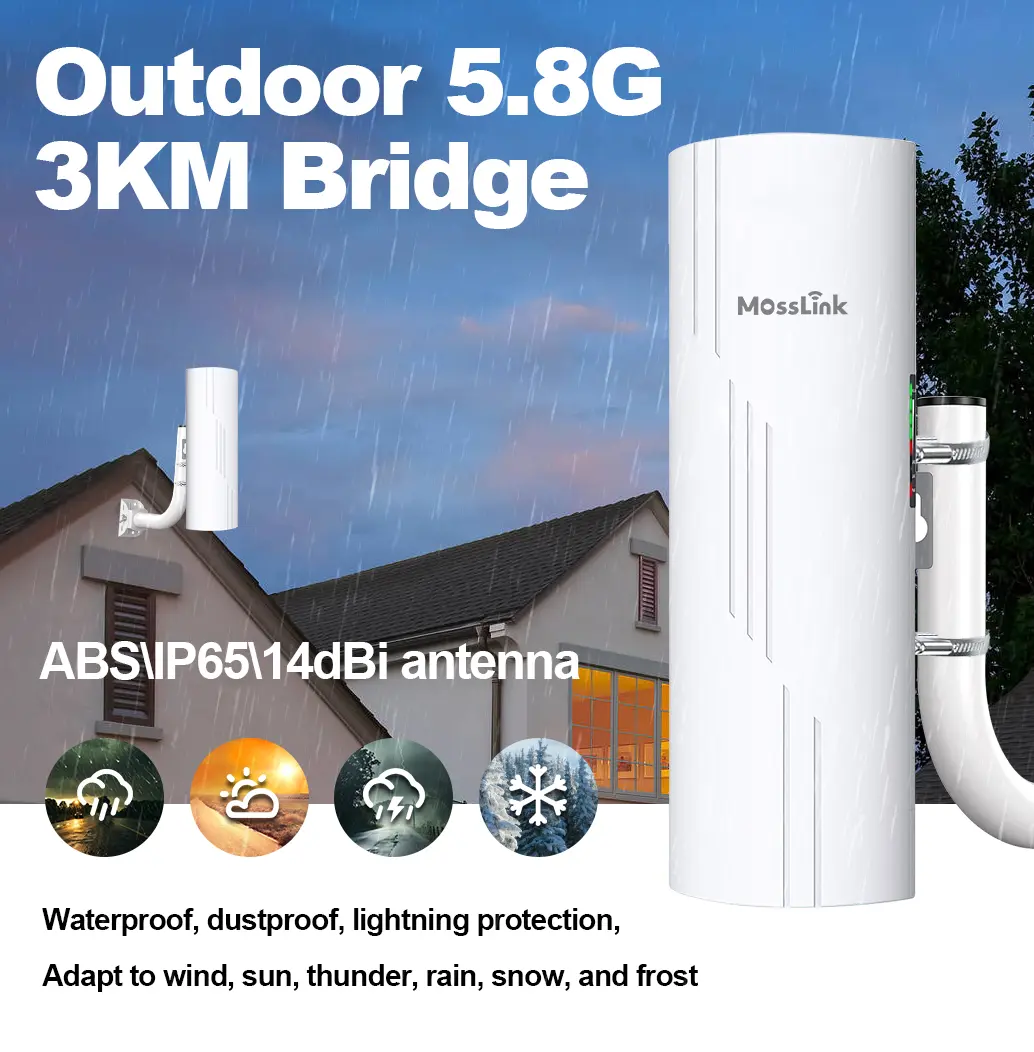

Enclosure IP65, 2kV Lightning Protection
Dimensions 250 × 90 × 60 mm
Weight <1kg (single), <2kg (pair)
Temperature -20°C ~ +55°C

Features

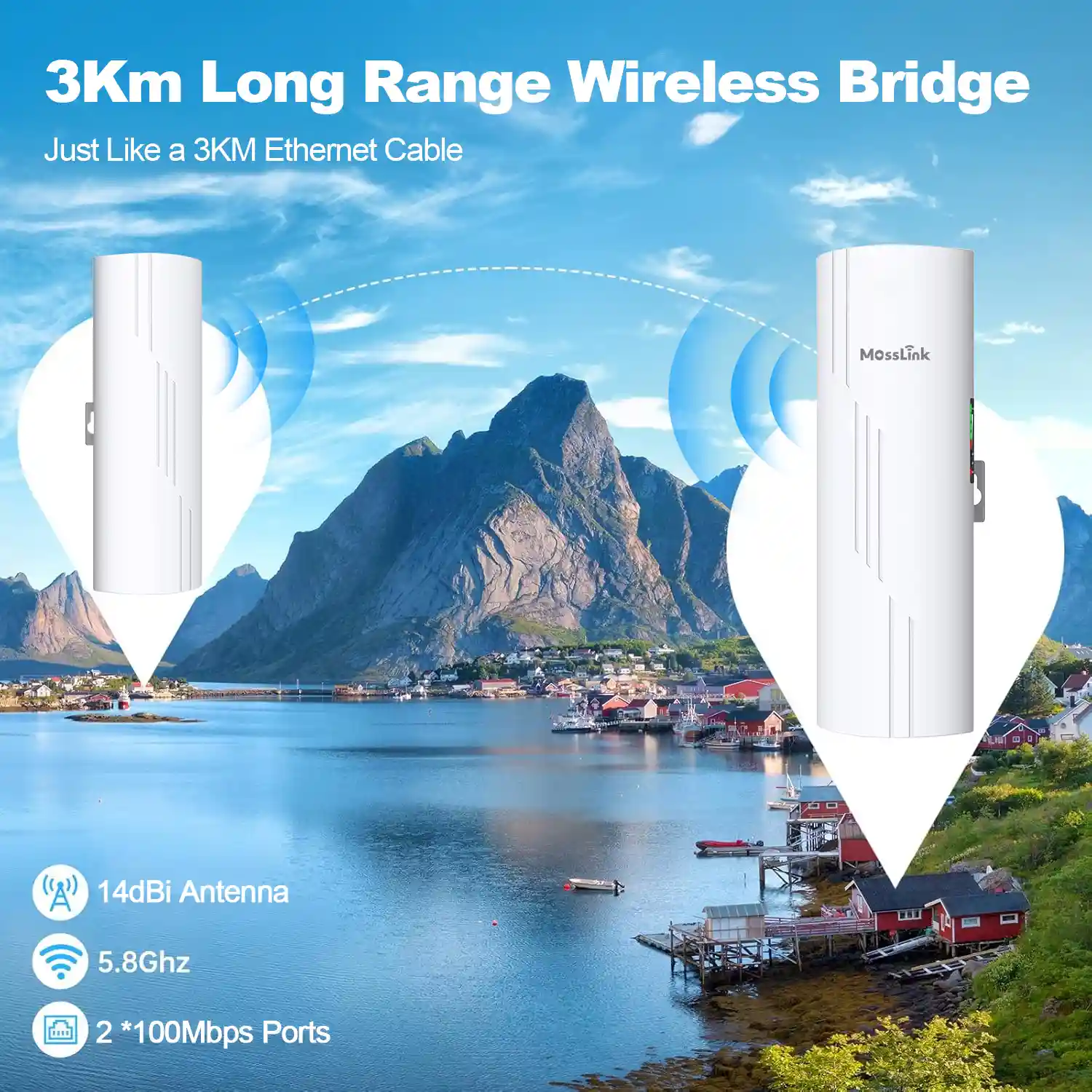

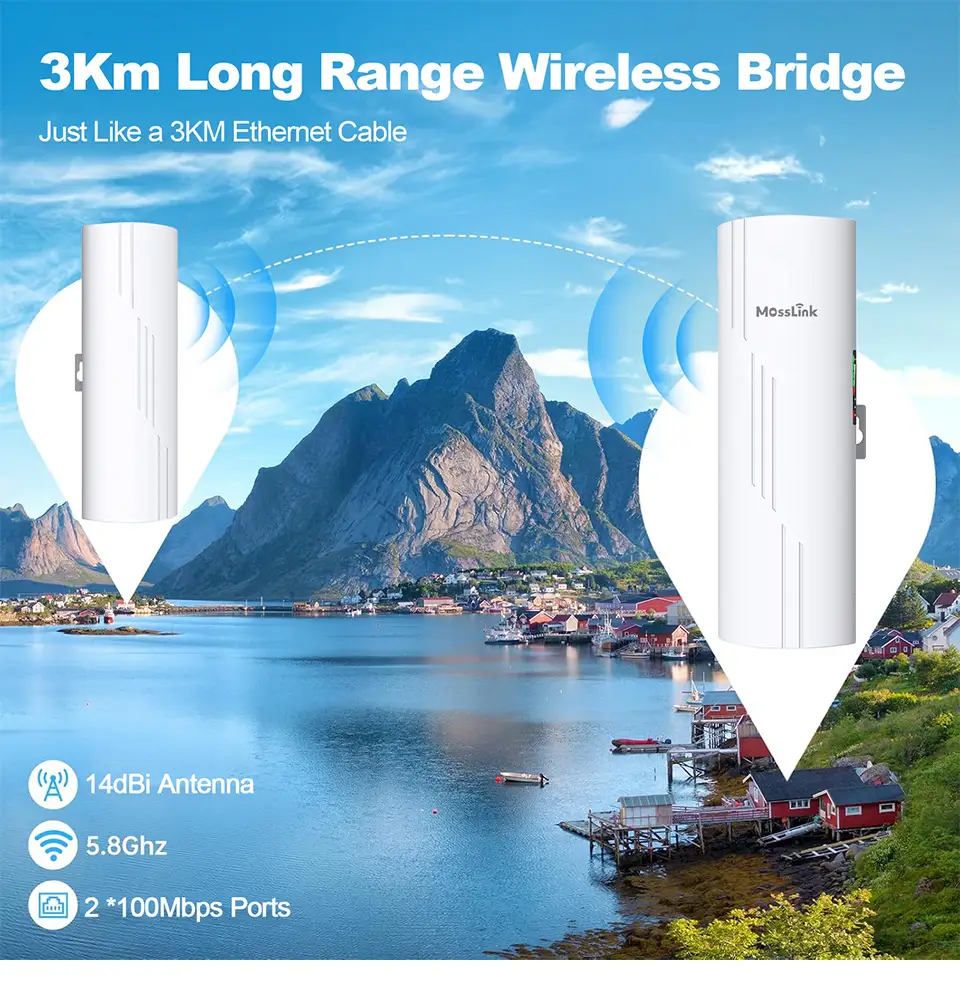

  • 300Mbps 5.8GHz with Qualcomm AR9344 for stable 3km point-to-point links
  • 14dBi dual-polarized directional antenna with pre-paired plug-and-play setup
  • 16-channel LED digital display for fast field channel pairing without web UI
  • Supports up to 15 IP camera channels simultaneously without lag
  • IP65 weatherproof housing with 2kV lightning protection
  • Dual power: DC 12V or 24V PoE for flexible outdoor installation
  • Bridge, AP, Client, and Relay modes for versatile deployment

The WB503H is a 5GHz outdoor point-to-point wireless bridge with a built-in 14dBi dual-polarized directional antenna for 3km links at 300Mbps. Powered by Qualcomm AR9344, featuring a 16-channel LED digital display for tool-free field pairing, IP65 housing with 2kV lightning protection, dual 10/100Mbps ports, and pre-paired 2-pack configuration, it supports up to 15 simultaneous IP camera channels and is designed for CCTV backhaul, IoT connectivity, and rural internet extension deployments.

Ideal For

  • CCTV and NVR IP camera backhaul over 1–3km with up to 15 channels
  • Building-to-building wireless networking for factories, warehouses, and schools
  • Rural broadband extension to secondary buildings or farm structures
  • IoT sensor and device data backhaul over medium-range outdoor links
  • Tower crane, construction site, and temporary wireless deployments

Deployment Advantages

Pre-paired factory configuration means both units in the 2-pack are ready to use immediately after mounting and powering — no web browser, laptop, or configuration app required for a basic bridge link. The 16-channel LED display confirms channel alignment visually on the unit, enabling fast deployment in field conditions where IT access is unavailable.

The Qualcomm AR9344 platform provides proven stability in long-running outdoor deployments with efficient power consumption under 6W, which simplifies PoE power budgeting in multi-bridge camera installations.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, pre-configuration services, and private-label 2-pack packaging. Volume pricing is available for CCTV installers, surveillance integrators, and wireless equipment distributors. Contact us to discuss your project requirements.

Frequently Asked Questions

How many IP cameras can the WB503H support simultaneously?
The WB503H supports up to 15 IP camera channels simultaneously without lag under typical 2–4MP encoding conditions. This makes a single WB503H pair sufficient for a medium-sized CCTV installation without requiring multiple bridge pairs or network aggregation.
Does the WB503H come pre-paired?
Yes. WB503H units sold as a 2-pack are pre-paired at the factory, so installation requires only mounting the two units, connecting PoE power, and optionally verifying the channel on the LED display. No web UI configuration is needed for a basic PtP bridge link.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services including custom firmware, enclosure branding, and private-label packaging. Contact us to discuss your project requirements.
