WB451H 5.8GHz 450Mbps 2KM Outdoor Wireless Bridge with PoE Output
WB451H
5 Years Warranty
Specifications
| Type | Outdoor PtP Wireless Bridge with PoE Output |
| CPU | MTK7621 2E, DDR2 64MB, Flash 8MB |
| Standard | IEEE 802.11a/n/ac (5.8GHz) |
| Antenna | 2× 12dBi Directional Panel Antennas |
| Max Speed | 450Mbps |
| Range | 1–2km (LoS) |
| Ethernet | 1× 10/100Mbps RJ45 (PoE In) |
| PoE Output | Yes — powers one IP camera directly |
| Power | 24V 1A PoE Adapter |
| Power Consumption | <3W |
| Enclosure | IP65 |
| Weight | 1 kg |
| Temperature | -30°C ~ +55°C |
Features
- 450Mbps 5.8GHz for smooth HD IP camera backhaul over 2km
- Built-in PoE output port powers a single IP camera directly — no separate injector
- 2× 12dBi dual-polarized directional panel antennas for stable focused signal
- Auto plug-and-play pairing — no technical configuration required

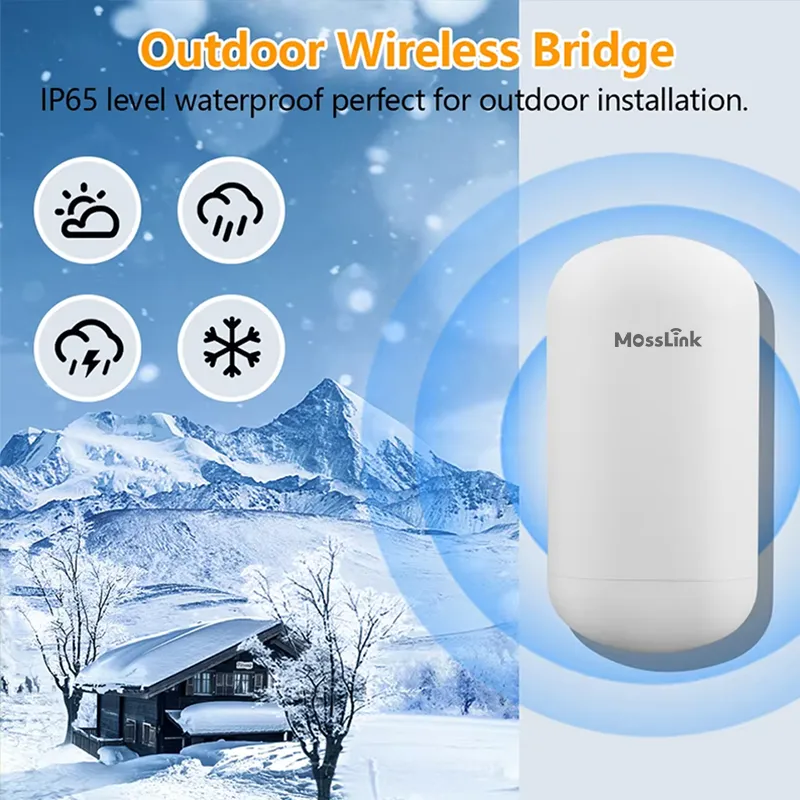

- IP65 weatherproof outdoor enclosure for harsh environments
- Supports Bridge, Access Point, Router, and Repeater modes
- 24V PoE single-cable installation — no AC outlet required at mount point

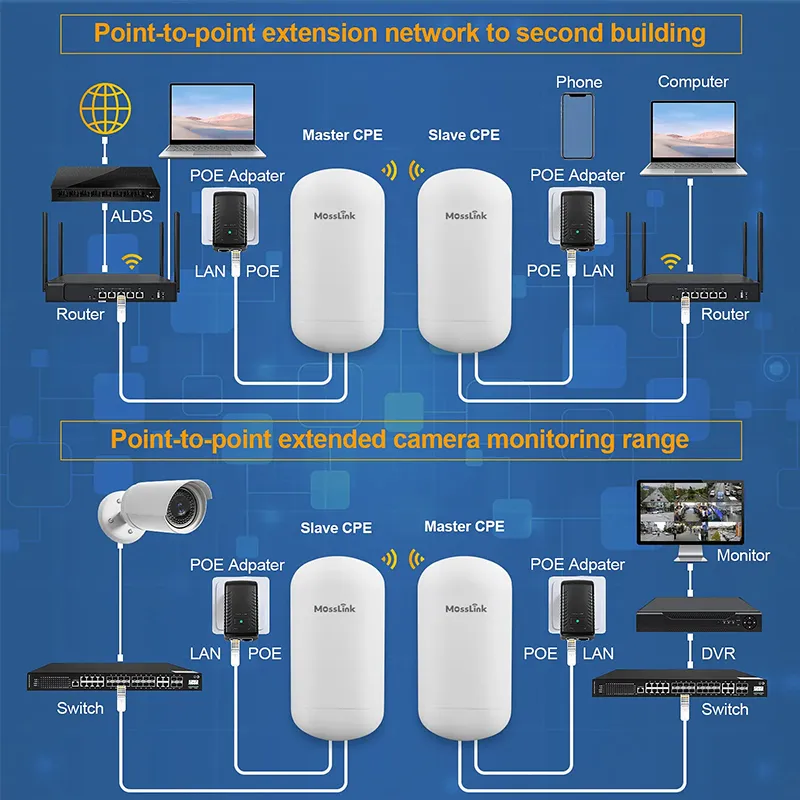

The WB451H is a 5.8GHz outdoor point-to-point wireless bridge with 2× 12dBi directional panel antennas for 2km links at 450Mbps. Its built-in PoE output port directly powers a single IP camera without a separate injector, making it ideal for surveillance and elevator monitoring. With auto-pairing, IP65 weatherproofing, multi-mode support (Bridge, AP, Router, Repeater), and 24V PoE power, it is designed for CCTV backhaul, farm-to-house connectivity, Starlink extension, and building-to-building wireless networking.
Ideal For
- IP camera CCTV backhaul with direct PoE power output to the camera
- Elevator and shaft monitoring where cable routing is impractical
- Farm, barn, and rural building wireless connectivity over 1–2km
- Warehouse and factory cross-building wireless LAN extension
- Starlink internet extension to secondary buildings up to 2km
Deployment Advantages
The integrated PoE output port is the WB451H’s key differentiator — it eliminates a component (PoE injector) and simplifies wiring at the camera end of a bridge link. A single cable from the WB451H carries both data and power to the camera, reducing installation time and potential failure points in remote surveillance deployments.

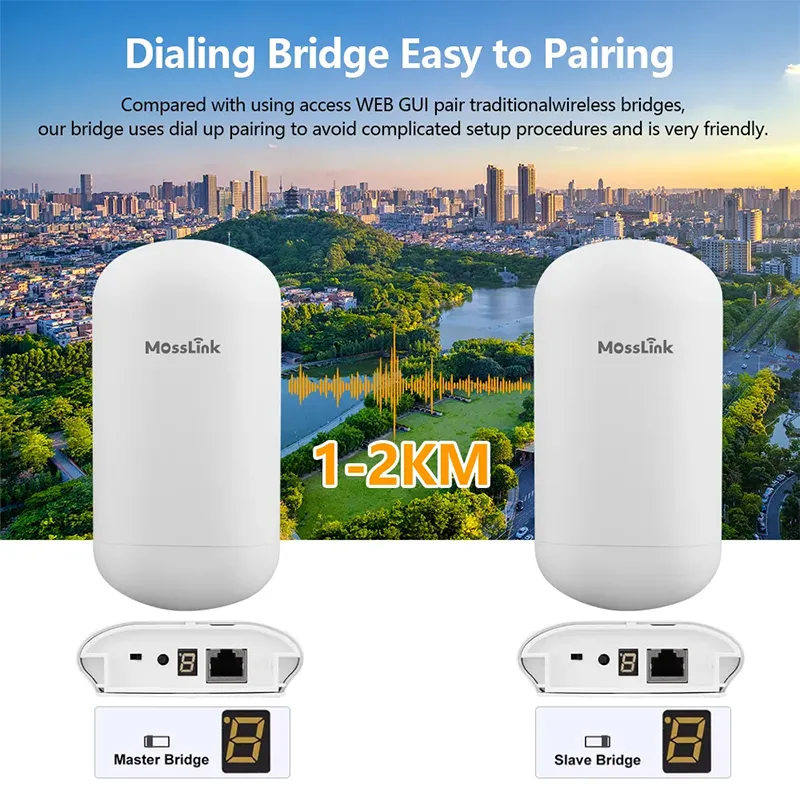

Auto plug-and-play pairing means the two-unit kit ships pre-configured and pairs without any web UI access, which is practical for installers working on rooftops, poles, or elevator machine rooms where laptop access is inconvenient.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, and private-label packaging. Volume pricing is available for CCTV installers, surveillance integrators, and wireless equipment distributors. Contact us to discuss your project requirements.
