WB2F01 2.4GHz 1.2KM Outdoor Wireless Bridge for CCTV and Internet Extension
WB2F01
5 Years Warranty
Specifications
| Type | 2.4GHz Outdoor Wireless Bridge |
| Standard | IEEE 802.11b/g/n (2.4GHz) |
| Antenna | Built-in 6dBi Omnidirectional ×2 |
| Max Speed | 300Mbps |
| TX Power | <20±2dBm |
| Range | Up to 1.2km (LoS) |
| WAN | 1× 10/100Mbps (12V PoE IN) |
| LAN | 1× 10/100Mbps |
| Power | PoE 12V, DC 12V |
| Power Consumption | <3W |
| Enclosure | IP65 |

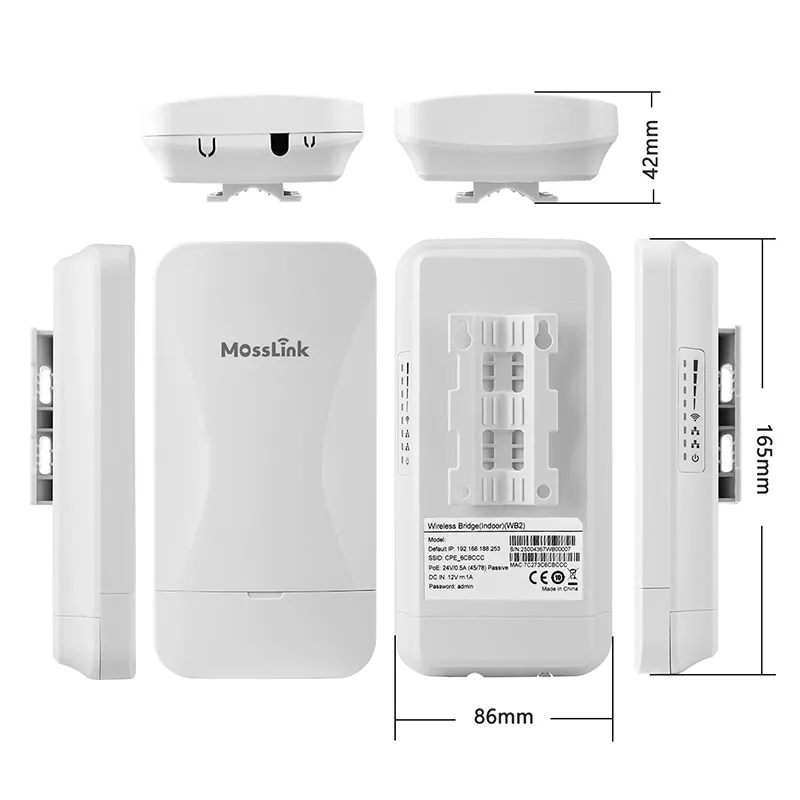

| Dimensions | 168 × 86 × 39 mm |
| Weight | 0.2 kg |
| Temperature | -10°C ~ +55°C |
Features
- 2.4GHz signal for better wall and obstacle penetration than 5GHz
- 1.2km point-to-point range with 6dBi omnidirectional antennas
- One-click master/slave slide switch for instant pairing — no configuration needed
- 300Mbps for smooth HD CCTV and IP camera backhaul

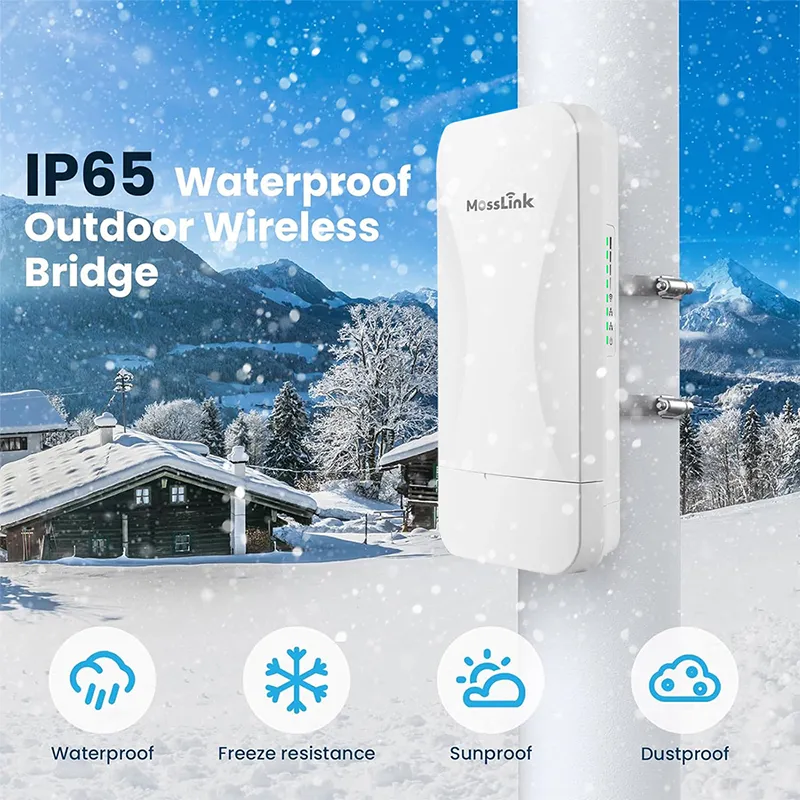

- IP65 weatherproof for harsh outdoor and elevator shaft environments
- 12V PoE single-cable power and data installation
- Cloud platform and AC centralized management support
The WB2F01 is a 2.4GHz outdoor wireless bridge for CCTV backhaul and internet extension over 1.2km point-to-point links. With one-click master/slave slide switch pairing, 300Mbps throughput, 12V PoE single-cable installation, IP65 weatherproof housing, and cloud management support, it is designed for elevator shaft monitoring, building-to-building LAN bridging, rural internet extension, and IP camera deployments where 2.4GHz penetration advantage matters.
Ideal For
- Elevator cabin monitoring where cable routing is impractical
- Building-to-building LAN extension without fiber or cabling
- Remote IP camera CCTV backhaul to NVR over 500m–1.2km
- Rural farm and village internet extension to secondary buildings
- Rapid temporary deployments requiring plug-and-play setup
Deployment Advantages

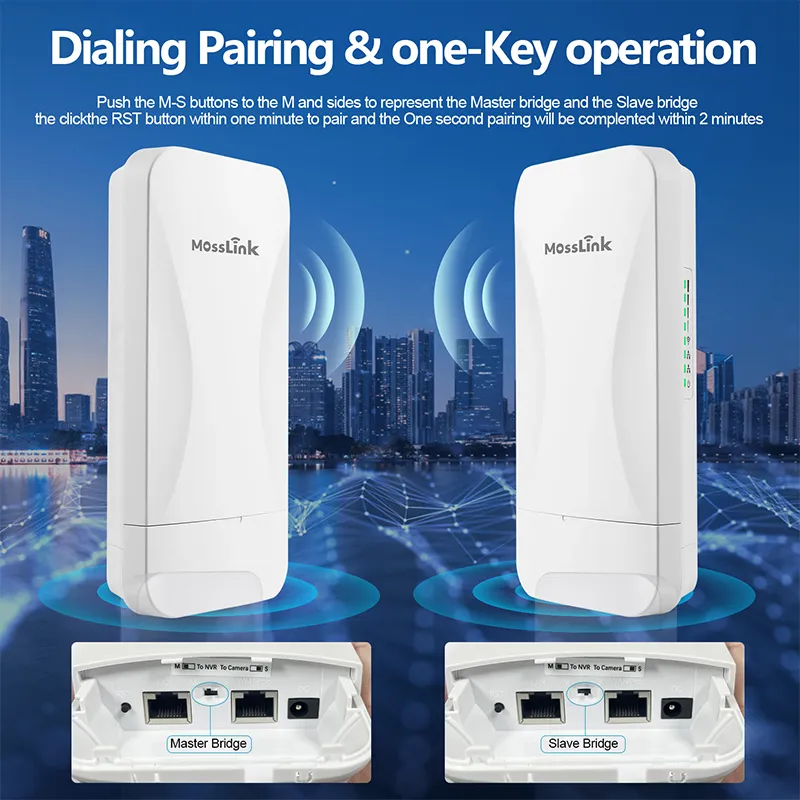

The one-click slide switch sets the unit as master or slave instantly, enabling true plug-and-play pairing without web UI access — critical for installers working at height or in restricted access areas. 2.4GHz signal penetration through walls and foliage extends effective range in partially obstructed deployments where 5GHz CPEs underperform.
The compact 168×86×39mm form factor and 0.2kg weight simplify installation in tight spaces such as elevator machine rooms, junction boxes, and small pole mounts. Cloud and AC centralized management enables bulk deployment management across multiple WB2F01 units from a single interface.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, enclosure branding, and private-label packaging. Volume pricing is available for surveillance integrators, elevator system suppliers, and wireless equipment distributors. Contact us to discuss your project requirements.
