CPE920 Outdoor 4G LTE Router with SIM Slot, 300Mbps

CPE920

Type Outdoor 4G LTE CPE Router
4G Module CAT4, DL 150Mbps / UL 50Mbps
4G Bands FDD B1/B3/B5/B7/B8/B20/B28; TDD B38/B40/B41
WiFi Standard 802.11b/g/n (2.4GHz)
WiFi Speed Up to 72Mbps
View all specifications →

5 Years Warranty

Talk via WhatsApp

Specifications

Type Outdoor 4G LTE CPE Router
4G Module CAT4, DL 150Mbps / UL 50Mbps
4G Bands FDD B1/B3/B5/B7/B8/B20/B28; TDD B38/B40/B41
WiFi Standard 802.11b/g/n (2.4GHz)
WiFi Speed Up to 72Mbps
Ethernet 1× 10/100Mbps LAN

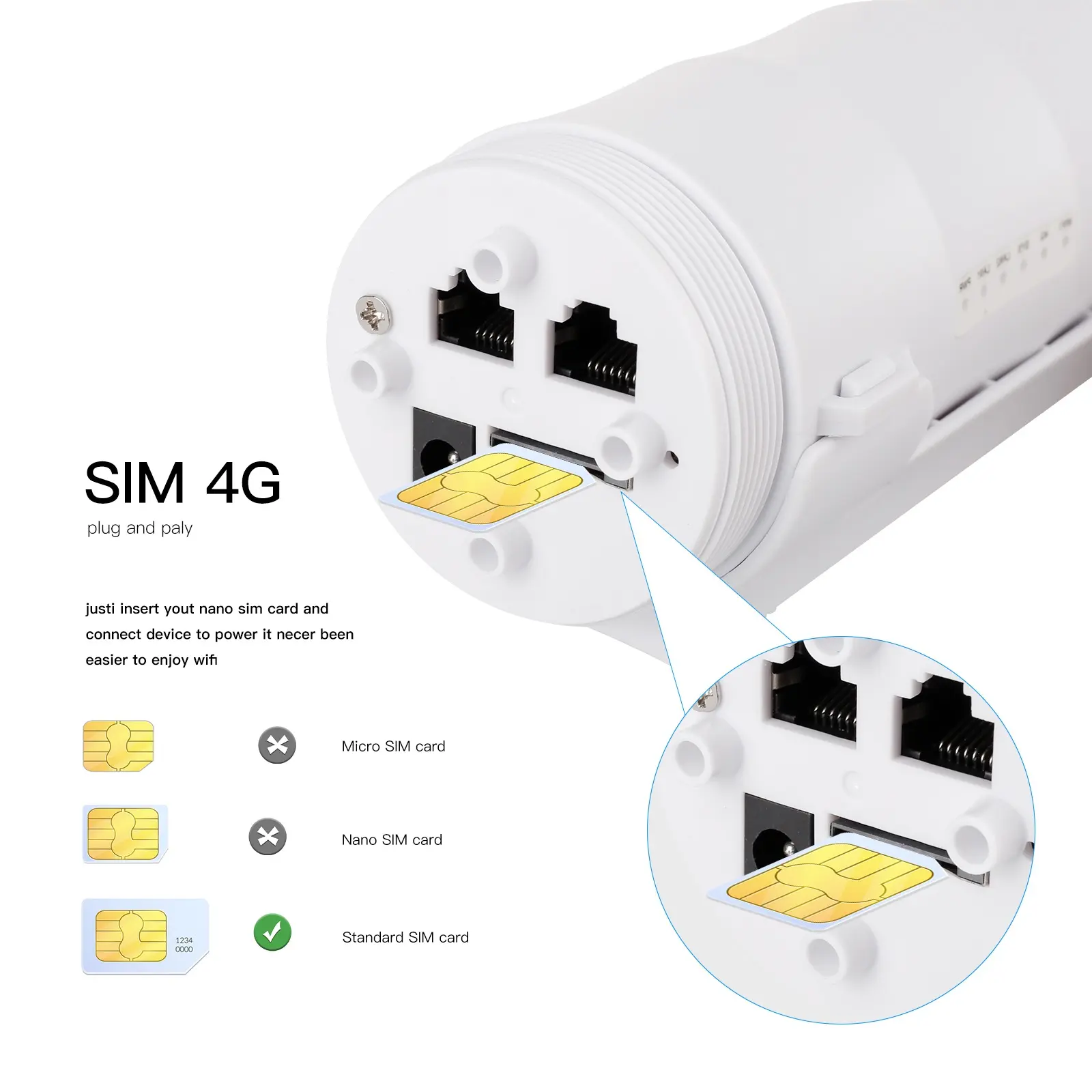

SIM Mini SIM (2FF)
Antenna 1× Built-in 2.4G + 2× External 4G
Power DC 12V

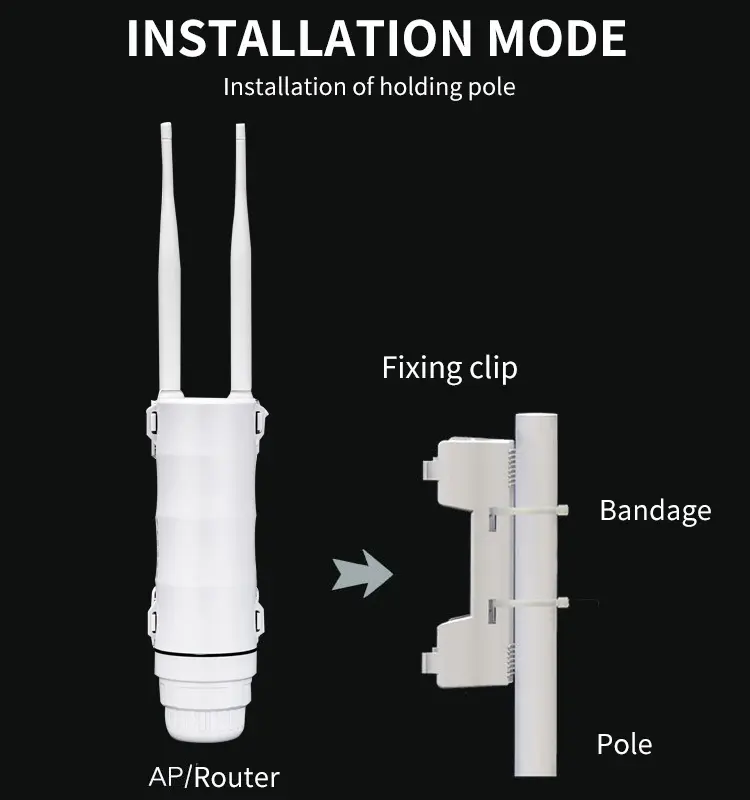

Mounting Wall / Pole Mount
Dimensions 202 × 68 × 68 mm
Temperature 0°C ~ +55°C

Features

  • 4G LTE CAT4 SIM-to-WiFi conversion — plug-and-play outdoor CPE
  • Supports EU/Asia 4G bands: FDD B1/B3/B5/B7/B8/B20/B28 + TDD B38/B40/B41
  • Built-in 2.4GHz 802.11b/g/n WiFi for local device connectivity
  • 1× 10/100Mbps LAN port for wired IP cameras or PCs
  • Compact ABS outdoor enclosure with wall and pole mount brackets
  • WPA2 encryption and DHCP/firewall configuration via web UI
  • Ideal for surveillance camera backhaul and remote site internet
  • Low-cost CPE solution for ISPs in developing markets

The CPE920 is an outdoor 4G LTE CPE router that converts a SIM card’s cellular signal into 2.4GHz WiFi and a wired LAN connection. Supporting EU/Asia 4G bands (FDD/TDD), CAT4 download speeds up to 150Mbps, and pole or wall mount options, it is designed for surveillance camera backhaul, rural WiFi coverage, temporary site internet, and low-cost ISP CPE deployments.

Ideal For

  • Surveillance and IP camera backhaul at remote or outdoor sites
  • Rural and agricultural broadband access via 4G LTE
  • Temporary construction site internet and mobile office setups
  • Low-cost CPE for ISPs serving developing markets
  • Vehicle and mobile internet applications

Deployment Advantages

The CPE920 eliminates the need for fixed-line infrastructure — insert a SIM, mount the unit on a pole or wall, and connectivity is established immediately. The built-in 2.4GHz WiFi serves local wireless devices while the LAN port provides a wired connection for IP cameras, NVRs, or industrial computers.

The compact ABS enclosure and standard mounting hardware make installation fast and straightforward in any outdoor location. Web UI configuration (default 192.168.1.1) requires no specialist knowledge, and WPA2 encryption protects the WiFi network from unauthorized access.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product, including custom firmware, band configuration, enclosure branding, and private-label packaging. Volume pricing is available for ISPs, integrators, and surveillance equipment resellers. Contact us to discuss your project requirements.

Frequently Asked Questions

What 4G bands does the CPE920 support?
The CPE920 supports FDD bands B1, B3, B5, B7, B8, B20, B28 and TDD bands B38, B40, B41, covering major 4G LTE frequencies across Europe and Asia. This makes it compatible with most mobile operators in these regions without SIM-lock restrictions.
Can the CPE920 be used for surveillance camera backhaul?
Yes. The CPE920 is purpose-designed for IP camera and remote site deployments. Its 1× LAN port connects directly to a camera or NVR, while the 4G LTE uplink provides backhaul to the cloud or monitoring center — ideal for sites without wired broadband.
How is the CPE920 powered and mounted?
The CPE920 operates on DC 12V input and includes both wall mount and pole mount brackets for flexible outdoor installation. Its compact ABS enclosure is suitable for pole-top or wall-side mounting at camera sites, construction areas, or remote field locations.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
