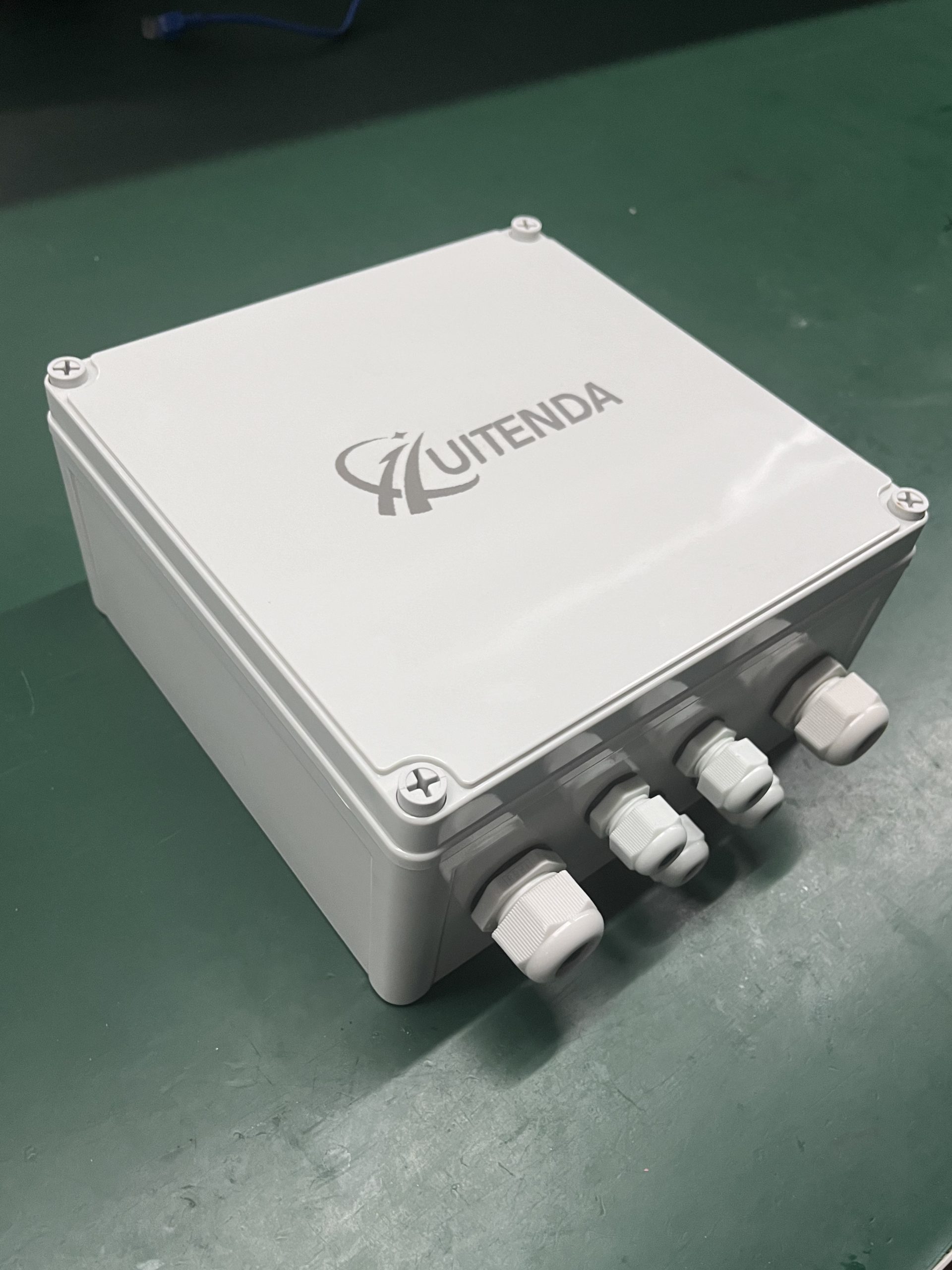

S402E-Outdoor 6-Port 100Mbps Outdoor PoE Switch, IP65, 250m Extend

S402E-Outdoor

Type Outdoor Unmanaged PoE Switch
PoE Ports 4× 10/100Mbps (IEEE 802.3af/at)
Uplink Ports 2× 10/100Mbps RJ45
PoE Per Port Up to 30W (802.3at)
Total PoE Budget 65W (52V 1.25A)
View all specifications →

5 Years Warranty

Talk via WhatsApp

Specifications

Type Outdoor Unmanaged PoE Switch
PoE Ports 4× 10/100Mbps (IEEE 802.3af/at)
Uplink Ports 2× 10/100Mbps RJ45
PoE Per Port Up to 30W (802.3at)
Total PoE Budget 65W (52V 1.25A)
Switching Capacity 1.6Gbps
Extend Mode Up to 250m @ 10Mbps
AI Watchdog Auto-detect and reboot unresponsive PoE devices

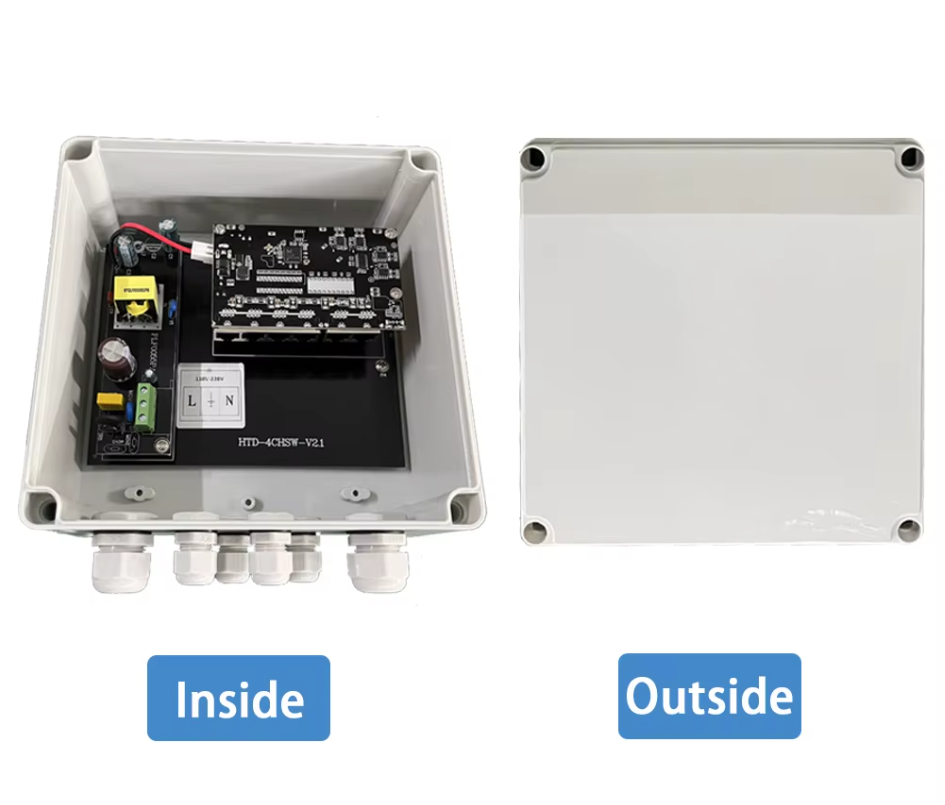

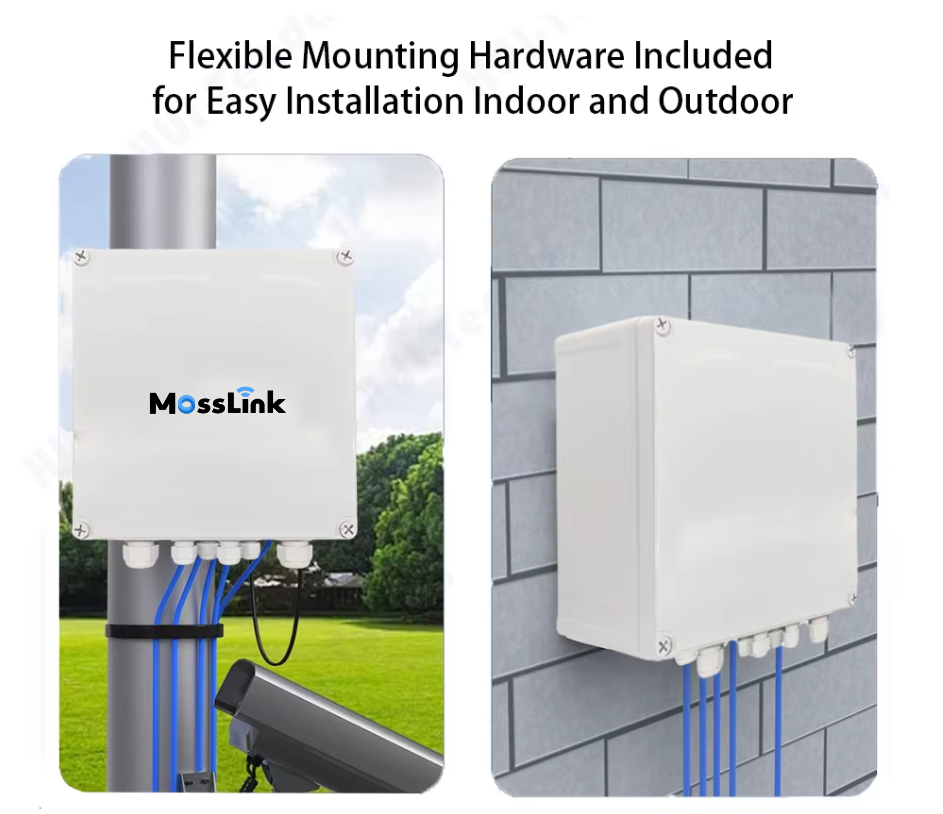

Enclosure IP65 Waterproof
Dimensions 230 × 150 × 45 mm
Temperature -10°C ~ +55°C
Weight 1 kg

Features

  • IP65 weatherproof outdoor enclosure for harsh environment deployment
  • 4× PoE ports (802.3af/at) — up to 30W per port, 65W total budget
  • EXTEND mode supports 250m long-distance PoE data + power transmission
  • AI Watchdog auto-reboots frozen or unresponsive IP cameras
  • VLAN isolation mode prevents broadcast storms between PoE ports
  • Power prioritization — critical devices powered first under load
  • Auto-detect PoE and non-PoE devices for safe mixed connections
  • Plug-and-play — no configuration required for installation

The S402E-Outdoor is a compact 6-port outdoor PoE switch with an IP65-rated weatherproof enclosure, four 802.3af/at PoE ports (30W each, 65W total), and EXTEND mode supporting 250m long-distance power and data transmission. With AI Watchdog, VLAN isolation, and plug-and-play operation, it is designed for outdoor IP camera systems, wireless AP deployments, and remote PoE installations in harsh environments.

Ideal For

  • Outdoor IP camera and CCTV system power and networking
  • Outdoor wireless access point PoE power delivery
  • Campus perimeter, industrial yard, and parking lot surveillance
  • Construction sites and temporary outdoor network deployments
  • Rural and remote monitoring installations with long cable runs

Deployment Advantages

The 250m EXTEND mode addresses one of the most common challenges in outdoor surveillance installation: cable run length. Standard PoE is limited to 100m, but EXTEND mode at 10Mbps provides power and HD camera data at distances up to 250m — sufficient for most outdoor perimeter camera placements without signal boosters or additional equipment.

AI Watchdog eliminates the most common support call for outdoor camera systems — a frozen camera that needs a power cycle. The switch autonomously detects the unresponsive device and restores it, typically within seconds. Combined with IP65 sealing against rain, dust, and temperature extremes from -10°C to +55°C, the S402E-Outdoor requires minimal maintenance after installation.

OEM/ODM Ready

MossLink offers OEM and ODM customization for this product, including custom enclosure branding, port configuration, extend mode range tuning, and private-label packaging. Volume pricing is available for surveillance integrators, security equipment distributors, and system installers. Contact us to discuss your project requirements.

Frequently Asked Questions

What is the EXTEND mode on the S402E-Outdoor?
EXTEND mode reduces the port speed to 10Mbps to enable PoE power and data transmission over cable runs up to 250 metres — more than double the standard 100m limit. This is essential for outdoor surveillance installations where cameras are mounted far from the nearest wiring closet or NVR.
How does the AI Watchdog function work?
The AI Watchdog continuously monitors connected PoE devices (such as IP cameras). If a device stops responding, the switch automatically cuts and restores power to that port — effectively rebooting the stuck device without any manual intervention. This prevents on-site service calls and maintains network uptime in unmanned outdoor locations.
Is the S402E-Outdoor suitable for CCTV installations?
Yes. The S402E-Outdoor is specifically designed for outdoor CCTV deployments. IP65 weatherproofing, 250m extend mode for long cable runs, AI Watchdog for camera auto-recovery, VLAN isolation, and plug-and-play operation make it a complete solution for security integrators and installers.
Is OEM/ODM customization available for this product?
Yes. MossLink offers full OEM and ODM services for this product, including custom firmware features, hardware modifications, enclosure branding, and private-label packaging. Minimum order quantities apply. Contact us to discuss your project requirements.
