APH4-BE3600 Wi-Fi 7 Outdoor Access Point, 3600Mbps, IP65, 2.5G Port, PoE
APH4-BE3600
5 Years Warranty
Specifications
| Type | Outdoor Wi-Fi 7 Access Point |
| Standard | Wi-Fi 7 (802.11be), 2.4GHz + 5GHz |
| CPU | AN7563 + MT7991B + MT7976CN + EN8811H |
| Memory | 128MB Flash + 512MB RAM |
| Max Speed | 3600Mbps (688 + 2882 Mbps) |
| Antenna | 2×2.4GHz + 2×5GHz Omnidirectional, 5dBi |
| Max Clients | 128 concurrent |

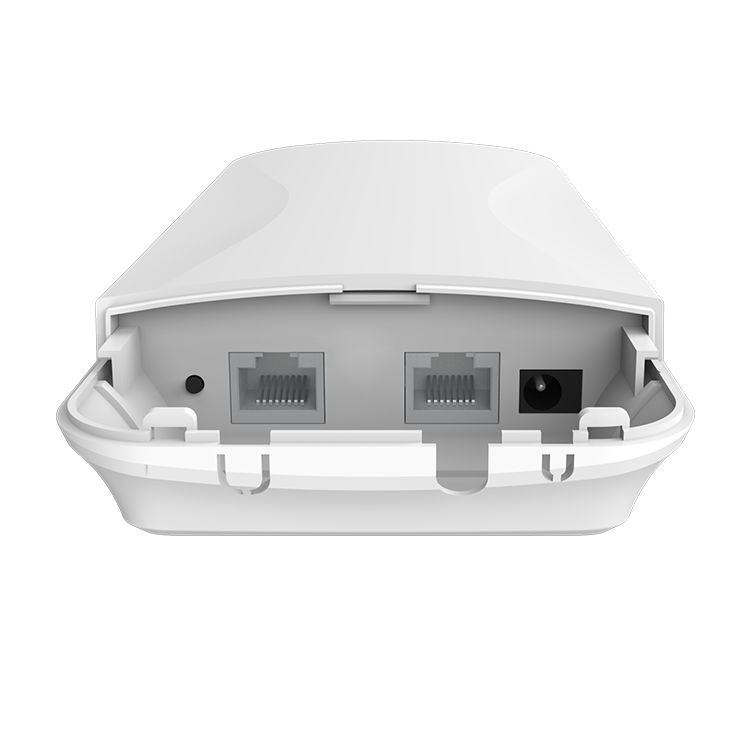

| WAN | 1× 2.5Gbps (PoE IN) |
| LAN | 1× 1Gbps |
| Power | DC 12V/2A or 802.3at PoE |
| Power Consumption | <20W |
| Coverage | 80m radius |
| Enclosure | IP65, UV-resistant |
| Dimensions | 196 × 86 × 40 mm |
| Weight | 0.4 kg |
| Temperature | -30°C ~ +55°C |
Features
- Wi-Fi 7 (802.11be) dual-band 3600Mbps — 688Mbps on 2.4GHz + 2882Mbps on 5GHz
- Next-gen AN7563 + MT7991B chipset for ultra-low latency and high efficiency
- 1× 2.5Gbps WAN port for high-bandwidth backhaul connections
- Supports up to 128 concurrent clients with 80m coverage radius
- IP65 UV-resistant weatherproof enclosure for harsh outdoor environments
- Dual power: 802.3at PoE or DC 12V for flexible installation
- Cloud and app management for centralized multi-site control
- Pole and wall mounting options included
The APH4-BE3600 is a next-generation Wi-Fi 7 outdoor access point delivering 3600Mbps dual-band performance (688Mbps on 2.4GHz and 2882Mbps on 5GHz) powered by the AN7563 + MT7991B + MT7976CN + EN8811H platform. With a 2.5Gbps WAN port, 128 concurrent client support, IP65 weatherproof UV-resistant enclosure, and 802.3at PoE or DC 12V power input, it is designed for hotel outdoor areas, campus perimeters, enterprise courtyards, and dense outdoor Wi-Fi deployments.
Ideal For
- Hotel outdoor areas, poolside, and resort perimeter Wi-Fi deployments
- Campus and university outdoor common areas requiring high-density coverage
- Enterprise courtyards and parking areas with large numbers of connected devices
- Commercial outdoor events, markets, and public Wi-Fi hotspot infrastructure
- ISP outdoor CPE and wireless access deployments requiring next-gen performance
Deployment Advantages
Wi-Fi 7’s Multi-Link Operation and 4096-QAM modulation provide measurably higher throughput and lower latency per client compared to Wi-Fi 6 equipment at the same price point. The 2.5Gbps WAN backhaul ensures the wireless capacity is not bottlenecked by the uplink, which is critical for dense deployments with many simultaneous HD video streams or large file transfers.
The compact 196×86×40mm form factor and 0.4kg weight simplify pole or wall mounting. IP65 UV-resistant housing protects against rain, dust, and long-term solar exposure without discoloration or degradation.
OEM/ODM Ready
MossLink offers OEM and ODM customization for this product including custom firmware, private-label cloud management integration, enclosure branding, and custom packaging. Volume pricing is available for hotels, ISPs, enterprise wireless integrators, and IT distributors. Contact us to discuss your project requirements.
